Overview

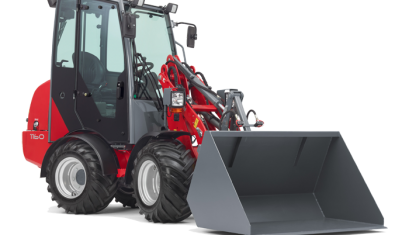

The multi-functional Hoftrac
Compact design, low centre of gravity, tight turning radius and powerful performance – these features have characterised the Hoftrac series for years and still determine the immense success of the machines. The Hoftrac effortlessly fulfills any work task quickly, flexibly and safely – a Hoftrac is simply always ready for use.
Weidemann articulated pendulum joint
The legendary articulated pendulum joint. All four wheels are in constant contact with the ground and the machine moves with maximum traction.
High quality powder coating
Quality creates added value. The powder coating is a key feature of the Weidemann quality standard.
100% differential lock
If necessary, the up to 100% connectable differential lock offers you maximum traction and shear force and keeps the tyre wear low.
Two strong lift cylinders
Weidemann always installs two lift cylinders in all Hoftrac and wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm.
Large selection of attachment tools
Use your machine as a multi-tool – you have a wide selection of attachments available for your Weidemann.
Large selection of tyres
The optimal tyres for every subgrade – you have a wide selection of different tyres available for your Weidemann.
Drive system
Compact axle T80
Electric drive system, travel direction can be selected via joystick
Active standstill regulation, the vehicle is held by the engine
Hill-hold function: In the event of a standstill on a hill, the electric motor holds the machine
Tires 10.0 / 75 – 15.3 AS ET10
Steering system
Hydraulic articulated pendulum steering, 12° oscillating angle
Hydraulics
3rd Control circuit front DN10
Lock for steering valve
Driver’s Cabin
Canopy with retaining system ROPS / FOPS tested
Comfort seat with safety belt, fully suspended, weight, back and horizontal adjustment, 60 mm spring deflection
Joystick with travel direction switch
Other
Working lights (2 front, 1 rear)
Operating hour meter
Battery charge indicator
Mechanical quick-change system for attachments
Weidemann 1160 eHoftrac Dimensions
- Total length 3.983 mm
- Total length (without bucket) 3.005 mm
- Axle middle to bucket pivot pin 508 mm
- Wheelbase 1.468 mm
- Rear overhang 917 mm
- Height to top of overhead guard fixed 2.257 mm
- Height to top of overhead guard foldable (eps) 2.361 mm
- Height to top of overhead guard foldable, folded (eps) 1.948 mm
- Seat top height 1.293 mm
- Total working height 3.443 mm
- Height of bucket pivot (max.) 2.760 mm
- Load-over height 2.441 mm
- Dumping height 1.819 mm
- Operating distance for M 498 mm
- Digging depth 77 mm
- Total width 1.044 mm
- Track width 780 mm
- Ground clearance 255 mm
- Maximum radius external 2.592 mm
- Radius at the outer edge 2.138 mm
- Inside turning radius 1.017 mm
- Inclination angle 50 °
- Rollback angle at max. lifting height 50 °
- Dumping angle (max.) 40 °
- Rollback angle (on the ground) 49 °
Load capacity diagram
a: 515 (558*) kg
b: 672 (725*) kg
c: 897 (963*) kg
*Values 2070 CX80 LP
Specifications
Technical specifications
| Standard | Outfitting example 1 | Outfitting example 2 | Outfitting example 3 | |
|---|---|---|---|---|
| Engine data | ||||
| Manufacturer | Perkins | Perkins | Perkins | Perkins |
| Engine type | 403 D-11 | 403 D-15 | 403 D-15 | 403 D-15 |
| Cylinders | 3 | 3 | 3 | 3 |
| Engine performance (max.) kW (hp) | 17.9 ( 24 ) | 23.4 ( 32 ) | 23.4 ( 32 ) | 23.4 ( 32 ) |
| at rpm (max.) rpm | 2,800 | 2,600 | 2,600 | 2,600 |
| Cubic capacity cm³ | 1,131 | 1,496 | 1,496 | 1,496 |
| Cooling system | Water | Water | Water | Water |
| Electrical system | ||||
| Operating voltage V | 12 | 12 | 12 | 12 |
| Battery Ah | 77 | 77 | 77 | 77 |
| Alternator A | 40 | 65 | 65 | 65 |
| Weights | ||||
| Operating weight (standard) kg | 1,910 | 2,060 | 2,150 | 2,250 |
| Lift force (max.) daN | 2,170 | 2,170 | 2,170 | 2,170 |
| Tipping load with bucket – machine straight kg | 905 | 994 | 1,144 / 1,285* | 1330* |
| Tipping load with bucket – machine articulated kg | 660 | 727 | 882 / 994* | 1087* |
| Tipping load with pallet fork – machine straight kg | 718 | 792 | 934 / 1,048* | 1095* |
| Tipping load with pallet fork – machine articulated kg | 521 | 576 | 721 / 808* | 885* |
| Vehicle data | ||||
| Axle (optional) | K80 (T80, T94) | T80 | T94 | T80 |
| Cab (optional) | FSD (eps) | FSD (eps) | FSD (eps) | Cab |
| Ground speed (optional) km/h | 0 – 13 (20, 30) | 0 – 20 | 0 – 20 (30*) | 0 – 20 (30*) |
| Speed stages (optional) | 1 (2*) | 2 | 2 | 2 |
| Fuel tank capacity l | 20 | 20 | 20 | 20 |
| Hydraulic oil tank capacity l | 20 | 20 | 20 | 20 |
| Hydraulic system | ||||
| External services – Operating pressure bar | 305 | 305 | 450 | 450 |
| Steering hydraulics – Oil flow l/min | 30.8 | 30.8 | 36.4 | 36.4 |
| Steering hydraulics – Operating pressure bar | 225 | 225 | 225 | 225 |
| Drive | ||||
| Type of drive | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic |
| Traction drive | Oil engine | Universal joint shaft | Universal joint shaft | Universal joint shaft |
*Tipping load with a cast rear counterweight
Tipping load calculation according to ISO 14397
FSD = canopy
eps = Easy Protection System (fold-down canopy)
Vibrations (weighted average effective value)
Hand-arm vibrations: The hand-arm vibrations are no more than 2.5 m/s²
Whole body vibrations: This machine is equipped with a driver’s seat that meets the requirements of EN ISO 7096:2000.
When the loader is properly used, the whole body vibrations vary from below 0.5 m/s² up to a short-term maximum value.
It is recommended to use the values specified in the table when calculating the vibration values according to ISO/TR 25398:2006. At the same time the actual use conditions have to be taken into consideration.
Telescopic loaders, like wheel loaders, are to be classified by operating weight.
| Average value | Standard deviation (s) | ||||||
| Type of loader | Typical operating conditions | 1.4*aw,eqx | 1.4*aw,eqy | aw,eqz | 1.4*sx | 1.4*sy | sz |
| [m/s²] | [m/s²] | [m/s²] | [m/s²] | [m/s²] | [m/s²] | ||
| Compact wheel loader (operating weight < 4,500 kg) |
Load & carry (load and transport work) | 0.94 | 0.86 | 0.65 | 0.27 | 0.29 | 0.13 |
| Wheel loader (operating weight > 4,500 kg) |
Load & carry (load and transport work) | 0.84 | 0.81 | 0.52 | 0.23 | 0.2 | 0.14 |
| Application in extraction (harsh application conditions) | 1.27 | 0.97 | 0.81 | 0.47 | 0.31 | 0.47 | |
| Transfer drive | 0.76 | 0.91 | 0.49 | 0.33 | 0.35 | 0.17 | |
| V-operation | 0.99 | 0.84 | 0.54 | 0.29 | 0.32 | 0.14 | |
