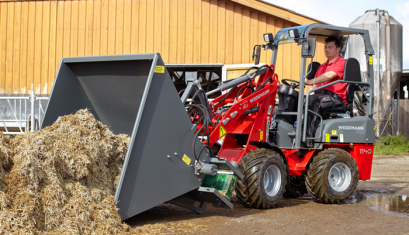

1140 Hoftrac

  • Overview
  • Specifications
  • Gallery


Compact design, low centre of gravity, tight turning radius and powerful performance – these features have characterised the Hoftrac series for years and still determine the immense success of the machines. The Hoftracs effortlessly fulfil any work task and work quickly, flexibly and safely – a Hoftrac is simply always ready for use.





Weidemann articulated pendulum joint

The backbone of the Weidemann design. The legendary articulated pendulum joint. All four wheels are in constant contact with the ground and the machine moves with maximum traction. This also makes the machine uniquely manoeuvrable.

High quality powder coating

Quality creates added value. A key feature of the Weidemann quality standard is the powder coating, which offers excellent corrosion protection. In contrast to the conventional wet painting, it greatly increases the service life of the machine and is therefore more efficient and also environmentally friendly.

Two strong lift cylinders

Weidemann always installs two lift cylinders in all Hoftrac and wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entyre loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

Perfectly matched P-kinematics

The angled loading arm is designed to be particularly sturdy and torsion resistant. At Weidemann, the kinematics are adjusted to the size of the machine – this ensures optimal balances of power for every machine. The advantage of P-kinematics lies in the exact parallel motion across the entyre lifting area.

Large selection of attachment tools

Use your machine as a multi-tool – you have a wide selection of attachments available for your Weidemann.

Large selection of tyres

The optimal tyres for every subgrade – you have a wide selection of different tyres available for your Weidemann.

Engine – Perkins 403 D-11 (17.9 kW / 24 hp)


  • Compact axle K75
  • Oil engines on the axles, travel direction can be selected via drive pedal
  • Service brake: Gear drum brake acting on rear axle
  • Central service and parking brake in the drive train acting on all 4 wheels
  • Tyres 7.00 – 12 AS ET40

Steering – Hydraulic articulated pendulum steering, 12° oscillating angle


  • 3rd Control circuit front DN10
  • Hydraulic oil cooler
  • Lock for steering valve
  • Floating position for lift and tilting cylinders

Driver’s cab

  • Canopy with retaining system ROPS / FOPS tested
  • Comfort seat with safety belt, fully suspended, weight, back and horizontal adjustment, 60 mm spring deflection


  • Working lights (2 front, 1 rear)
  • Operating hour meter
  • Battery circuit breaker
  • Fuel display
  • Mechanical quick-change system for attachments

Weidemann 1140 Dimensions

  • Total length 3.706 mm
  • Total length (without bucket) 2.733 mm
  • Axle middle to bucket pivot pin 496 mm
  • Wheelbase 1.345 mm
  • Rear overhang 779 mm
  • Height to top of overhead guard fixed 2.124 mm
  • Height to top of overhead guard foldable (eps) 2.227 mm
  • Height to top of overhead guard foldable, folded (eps) 1.937 mm
  • Seat top height 1.142 mm
  • Total working height 3.415 mm
  • Height of bucket pivot (max.) 2.734 mm
  • Load-over height 2.405 mm
  • Dumping height 1.807 mm
  • Operating distance for M 550 mm
  • Digging depth 113 mm
  • Total width 850 mm
  • Track width 660 mm
  • Ground clearance 190 mm
  • Maximum radius external 2.140 mm
  • Radius at the outer edge 1.570 mm
  • Inside turning radius 600 mm
  • Inclination angle 55 °
  • Rollback angle at max. lifting height 50 °
  • Dumping angle (max.) (max.) 39 °
  • Rollback angle (on the ground) 48 °

eps (Easy Protection System) = fold-down canopy



Engine data
Manufacturer  Perkins Perkins
Engine type  403 D-11 403 D-11
Cylinders  3 3
Engine performance (max.)  kW (hp) 17.9 ( 24 ) 17.9 ( 24 )
at rpm (max.)  rpm 2,800 2,800
Cubic capacity  cm³ 1,131 1,131
Cooling system  Water Water
Electrical system
Operating voltage  V 12 12
Battery  Ah 77 77
Alternator  A 40 40
Operating weight (standard)  kg 1,630 1,630
Lift force (max.)  daN 1,981 1,981
Tipping load with bucket – machine straight  kg 664 688 / 846*
Tipping load with bucket – machine articulated  kg 490 509 / 621*
Tipping load with pallet fork – machine straight  kg 532 556 / 679*
Tipping load with pallet fork – machine articulated  kg 391 407 / 497*
Vehicle data
Axle (optional) K75 (K90) K75 (K90)
Cab (optional) FSD (eps) FSD (eps)
Ground speed  km/h 0 – 12 0 – 13
Speed stages  1 1
Fuel tank capacity  l 21 21
Hydraulic oil tank capacity  l 18 18
Hydraulic system
External services – Operating pressure  bar 215 305
Steering hydraulics – Oil flow  l/min 30.8 30.8
Steering hydraulics – Operating pressure  bar 205 205
Type of drive  hydraulic Hydrostatic
Traction drive  Oil engine Oil engine
  • *Tipping load with counterweight
  • Tipping load calculation according to ISO 14397
  • FSD = canopy
  • eps = Easy Protection System (fold-down canopy)
