Overview

VALTRA A SERIES IS OUR ANSWER TO YOUR WISHES

A Series shares many of the features of its big brothers, the N and T Series, but in a very compact form. It is fun to drive, light and agile, but it puts power on the ground and offers plenty of power for your modern implements.

RELIABILITY, YEAR AFTER YEAR

We know that if we want to get the job done right, we’d better do it ourselves. We produce the key components of our tractors in-house. We’ve designed and engineered the intelligent chassis, robust transmission and spacious cab. AGCO Power, the “Sisu”, has been the Valtra engine for more than 60 years. It is the engine that sets the industry standard for reliability.

EASE OF USE FOR ANY JOB

The A Series has the power for pulling a plough and the agility for feeding your animals. It offers excellent visibility for precision work and versatility for power-hungry implements. The transmission operation could not be easier. Daily maintenance is simple: checking the fuel, oil and other liquids takes almost no time at all.

LOW TOTAL COST OF OWNERSHIP

Total cost of ownership is about the big picture as well as the small details. The main thing is to have a robust and durable machine that is built for the task at hand. But we’ve gone further in developing innovative technologies and services that lighten the load on your wallet.

  • SCR-only AGCO Power engines give you the best overall liquid economy
  • Select a Valtra Care extended warranty to fix your maintenance costs and get the service contract that suits your needs
  • AGCO Finance helps you to find an optimal solution for your investment
  • Your Valtra dealer is always there to ensure full performance and the best resale value for your tractor

DESIGNED FOR COMFORT

Class-leading ergonomy and a low noise level of just 75dB make sure the A Series keeps you comfortable in all situations. The compact but spacious cab is designed to offer more space at the shoulder line where it is needed. Efficient heating and air conditioning ensure comfortable working conditions in any weather.The cab structure is narrow at the front to help you navigate in close quarters like livestock buildings or dense forests.

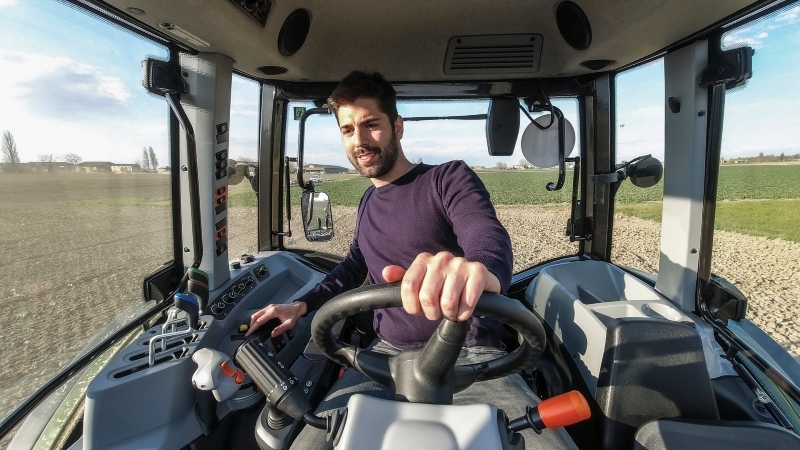

DESIGNED FOR VISIBILITY

The new six-post cab is designed for excellent visibility all around, day in, day out. We call it the 365 day visibility concept.

The unique sweeping A-pillar design improves forward visibility.



  • The curved windscreen and optional roof window offer an excellent view to front loader operations.
  • The sloping bonnet offers the best front-down visibility on the market
  • The upwards-curving windscreen and large roof window (optional high-visibility roof) give an excellent view to front loader operations.
  • Due to the compact dimensions of the engine emission control system the A Series has a sloping bonnet with the 4th generation look and design for the best front-down visibility in the market.
  • Perfect work lights and market-leading upper, low and main beams.
  • The large rear window and short roof provide excellent rear visibility, especially with the 180° turning seat for special tasks like forestry.

Designed for Practicality

The wedge-shaped cab helps manoeuvring in tight farmyards and leads away water, snow or tree branches. To make multitasking easier, the A Series is available with the famous Valtra power shuttle featuring the easy-to-use park position. The steering wheel is equipped with easy pedal tilt and gives easy access to the driver’s seat.

DESIGNED FOR DURABILITY

The new cab’s frame design is based on curved profiles and car-like deep-drawn parts. This translates into a stiffer structure that is free of vibration and extra noises. Premium build quality also ensures tight sealing of doors and windows, and provides a sturdy basis for high-quality trim fittings.



DESIGNED TO MAKE A STATEMENT

The forward-leaning roof gives the tractor a powerful, even aggressive look that clearly means business. The A Series cab offers the most usable operator space in its class. Quality materials and design are apparent in every detail, from the precisely engineered new frame construction to the modern dashboard with both analogue and digital displays.



ENGINE

Famous for their reliability, durability and fuel economy, the 3.3 litre and 4.4 litre AGCO Power engines are environmentally friendly and quiet, while offering high torque (max 312 Nm @ 1500 rpm) a broad speed range. The Valtra A Series is fun to drive and easy to handle due to its unbeatable engine characteristics.

TRANSMISSION

To make sure the power of the new engines is effectively transferred to the ground, we equipped the A Series with an all-new highly efficient transmission. The new gearbox provides 12 forward and reverse speeds courtesy of 2 ranges. Six of the speeds fit the typical fieldwork speed range of 4 – 12 km/h. A super creeper option offers as low as 0.09 km/h speeds (engine 1400 r/min), making it a truemulti-application gearbox.

  • A104 and A114 HiTech4 models optionally offer a 16 forward and 16 reverse speed transmission

In HiTech 4 models, a combination of four step power shift and robotised group gears offer an easy-to use solution for all work tasks. The power-shift can be controlled automatically or manually

VALTRA UNLIMITED

The Valtra Unlimited studio at the Suolahti factory is widely known for its capability to make customer wishes come true. The studio can fit any accessories and equipment that are not available directly from the production line during the normal manufacturing process. Our Valtra Unlimited mechanics are qualified experts who are supported by the skills and expertise of the entire factory. This ensures the highest levels of quality and safety also for our customised products. All the accessories and equipment fitted by the Valtra Unlimited studio are covered by the factory warranty, and we also supply all the servicing and spare parts for them.

Specify accessories and special features. The Valtra Unlimited service creates unlimited possibilities. Get a unique exterior package with a special paint colour, or choose interior features such as leather and chrome. Select business applications, like a bottom grader, or special military features. Everything is installed at the factory and covered by the factory warranty. The sky’s no limit!

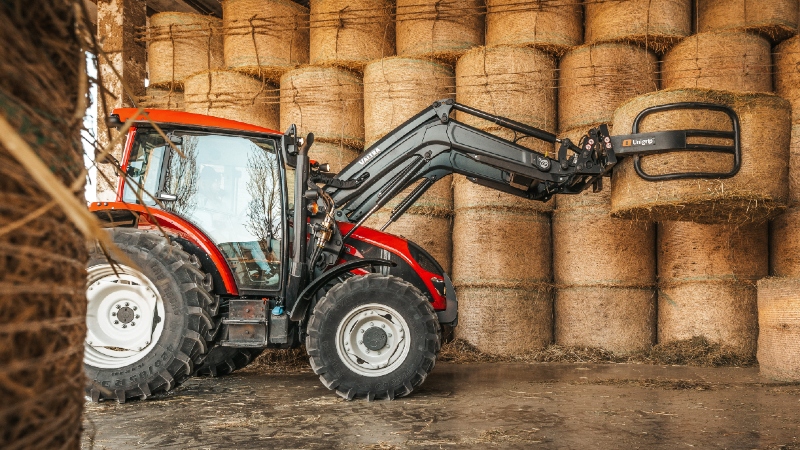

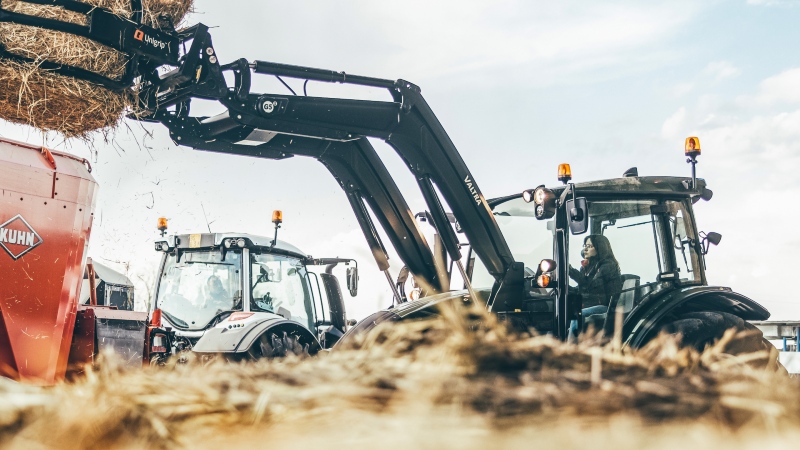

FACTORY-FITTED FRONT LOADER

Valtra factory-fitted front loaders come with ergonomically designed controls. As the front loader is an integrated part of the tractor’s design, the front loader has no effect on the tractor’s turning radius. The innovative cab of the A Series is designed to offer excellent visibility during front loader work, and the optional high-visibility roof window enhances visibility even further.

Tractors come with factory-fitted front loaders that are seamlessly integrated to the chassis at the assembly line. This ensures assembly quality and ergonomically designed controls. As the front loader is an integrated part of the tractor’s design, the front loader has no effect on the tractor’s turning radius. The spacious cab of the A Series is designed to offer excellent visibility during front loader work, and the optional high-visibility roof window enhances visibility even further.

We think it is safe to say that, as a front loader tractor, the A Series is the best in the market. So it comes as no surprise that more than a half of Valtra A Series tractors have been ordered with a factory-fitted front loader.

Specifications

FIND YOUR PERFECT FIT

75-95 hp, S chassis

  • Engine power 75, 85 or 95 hp
  • New 3 cylinder Compact series engines from AGCO Power
  • Wheel base 2250
  • Valtra Power shuttle (or mechanical shuttle) transmission 12+12R
  • Very easy to operate

100 and 110 hp, M chassis

  • Engine power 100 or 110 hp
  • New 4 cylinder Compact series engines from AGCO Power
  • Wheel base 2430
  • Valtra Power shuttle (or mechanical shuttle) transmission 12+12R
  • Very easy to operate
  • Valtra Hitech4 with clutchless 16+16R transmission

120 and 130 hp, L chassis

  • Engine power 120 or 130 hp
  • New 4 cylinder Compact series engines from AGCO Power
  • Wheel base 2500
  • Valtra Power shuttle (or mechanical shuttle) transmission 12+12R
  • Very easy to operate
Model Max. power
(ISO 14396)
Transmission options
hp kW Nm Cylinders Wheelbase Mech shuttle Power shuttle Creeper *
A74 75 56 312 3 2250 x x optional
A84 85 63 347 3 2250 x x optional
A94 95 71 355 3 2250 x x optional
A104 100 75 410 4 2430 x x optional
A114 110 82 417 4 2430 x x optional
A124 120 89 502 4 2500 x x optional
A134 130 97 540 4 2500 x x optional
