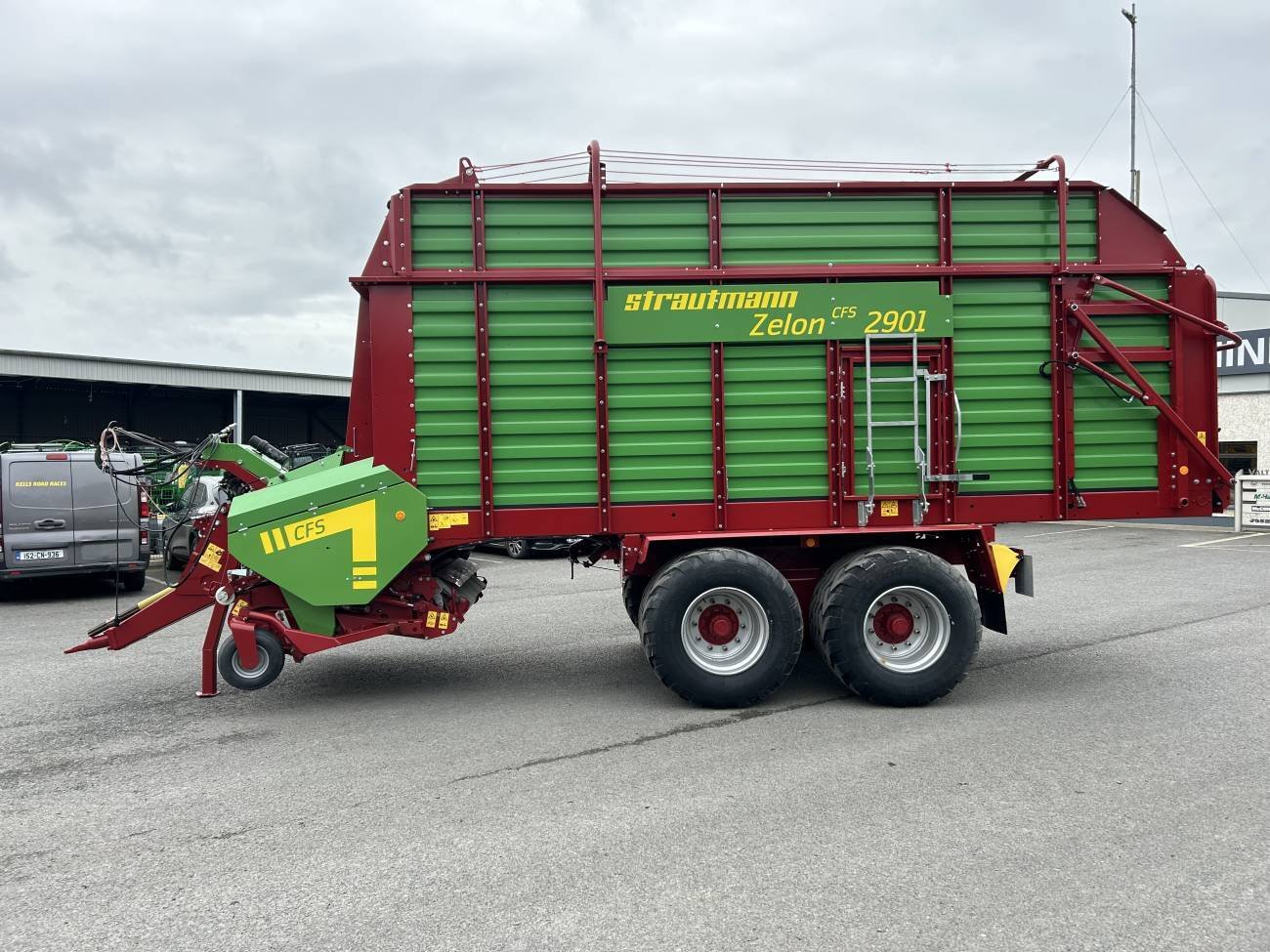

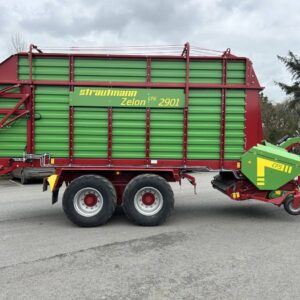

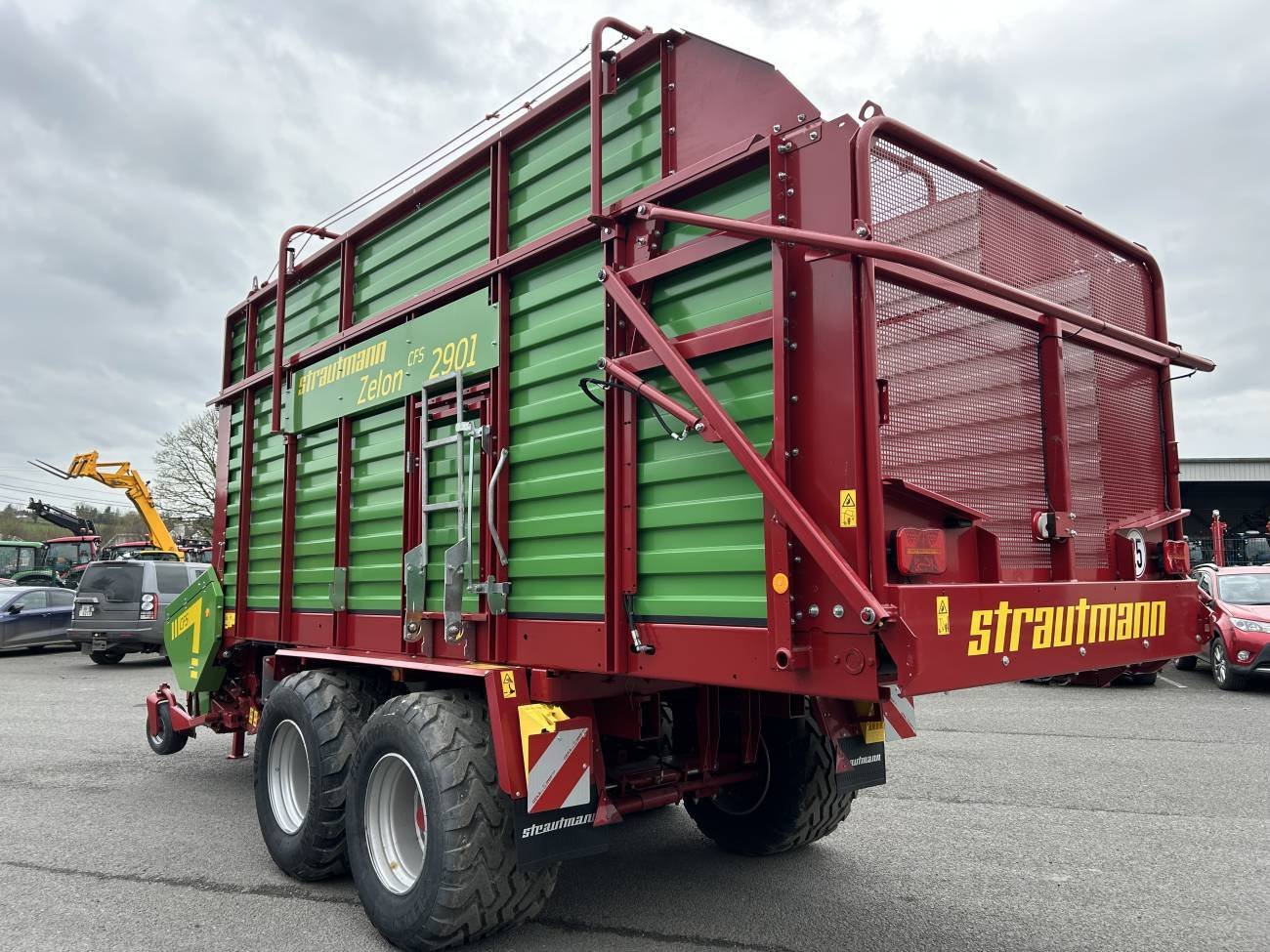

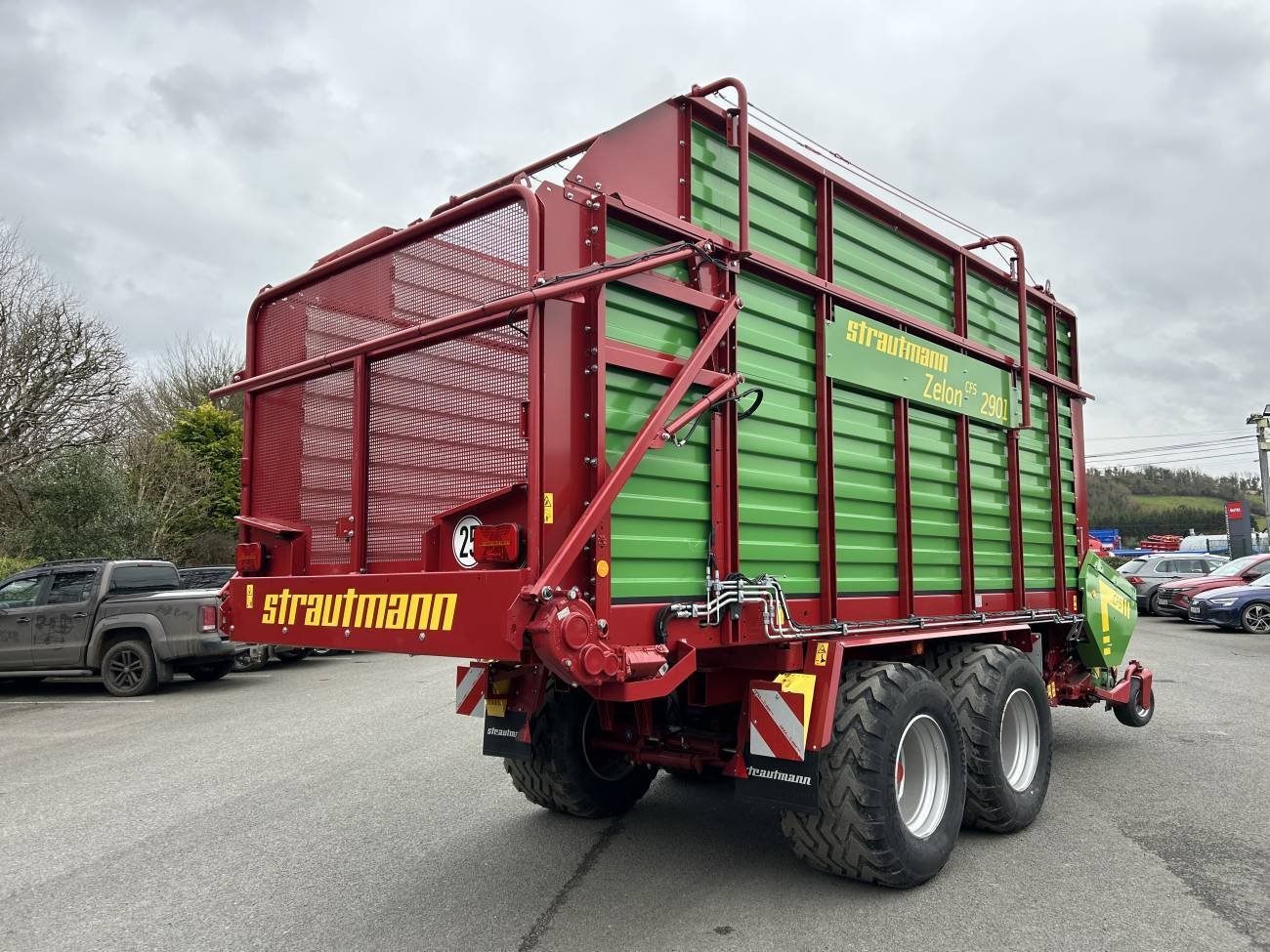

Strautmann Zelon CFS

This forage wagon is ideally suited for self-mechanised dairy farms or machine pools that value high forage quality with low power requirements.

• ZelonCFS 250, 290 (DO) und 360 (DO)
• loading capacity 24 – 35 m³

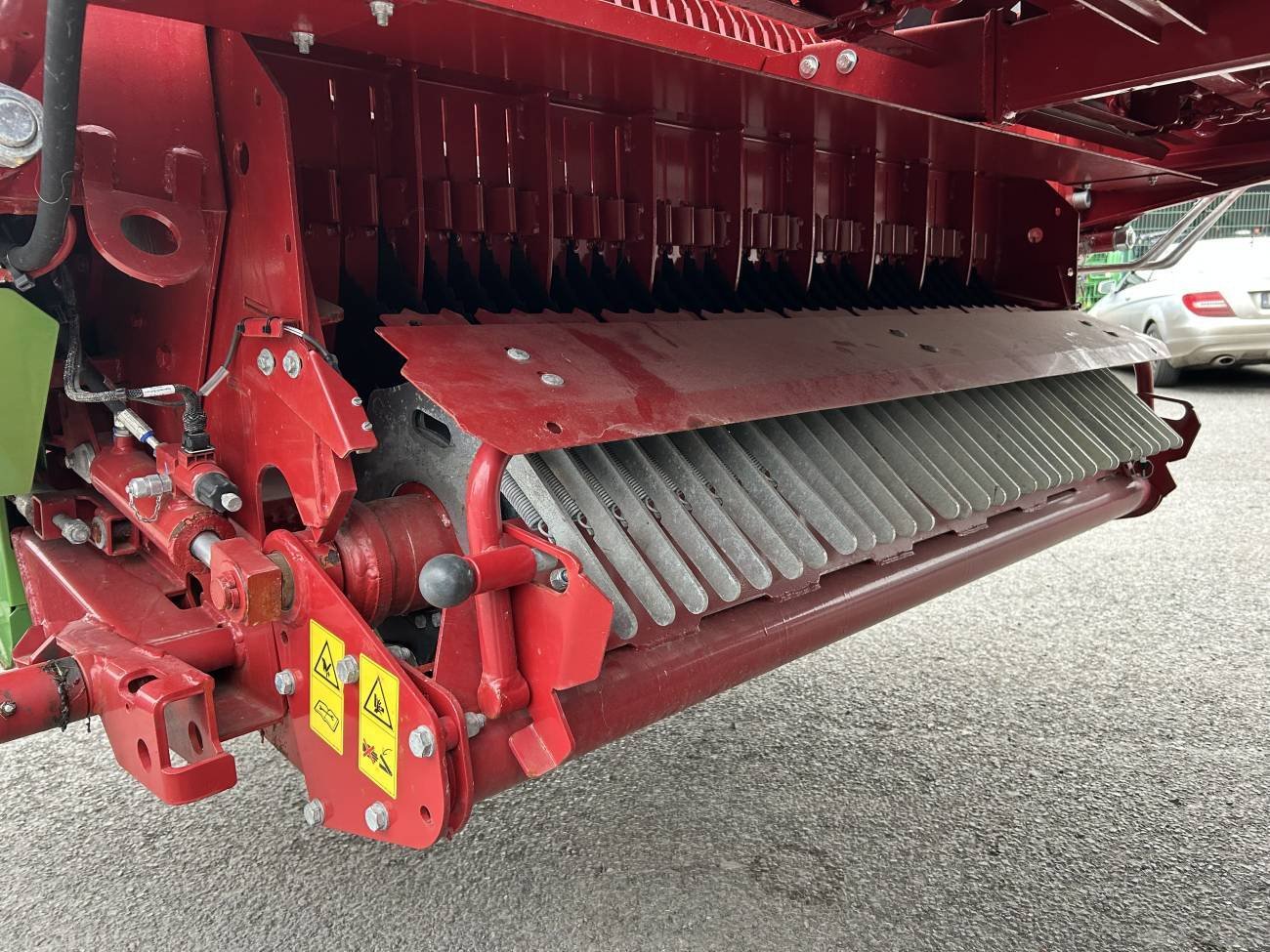

• 1.80 m wide camless pick-up
• Adjustable roller crop guard
• Optional 500 mm wide additional guide roller mounted behind the pick-up
• Exact-Cut cutting unit with 37 knives and 39 mm cutting length
• Powder coated steel floor

Chassis

•  Suspended 13 t boogie tandem chassis
• 40 km/h
• 16 t chassis optional
• Optional passive steering
• Tyres up to 710/40 R22

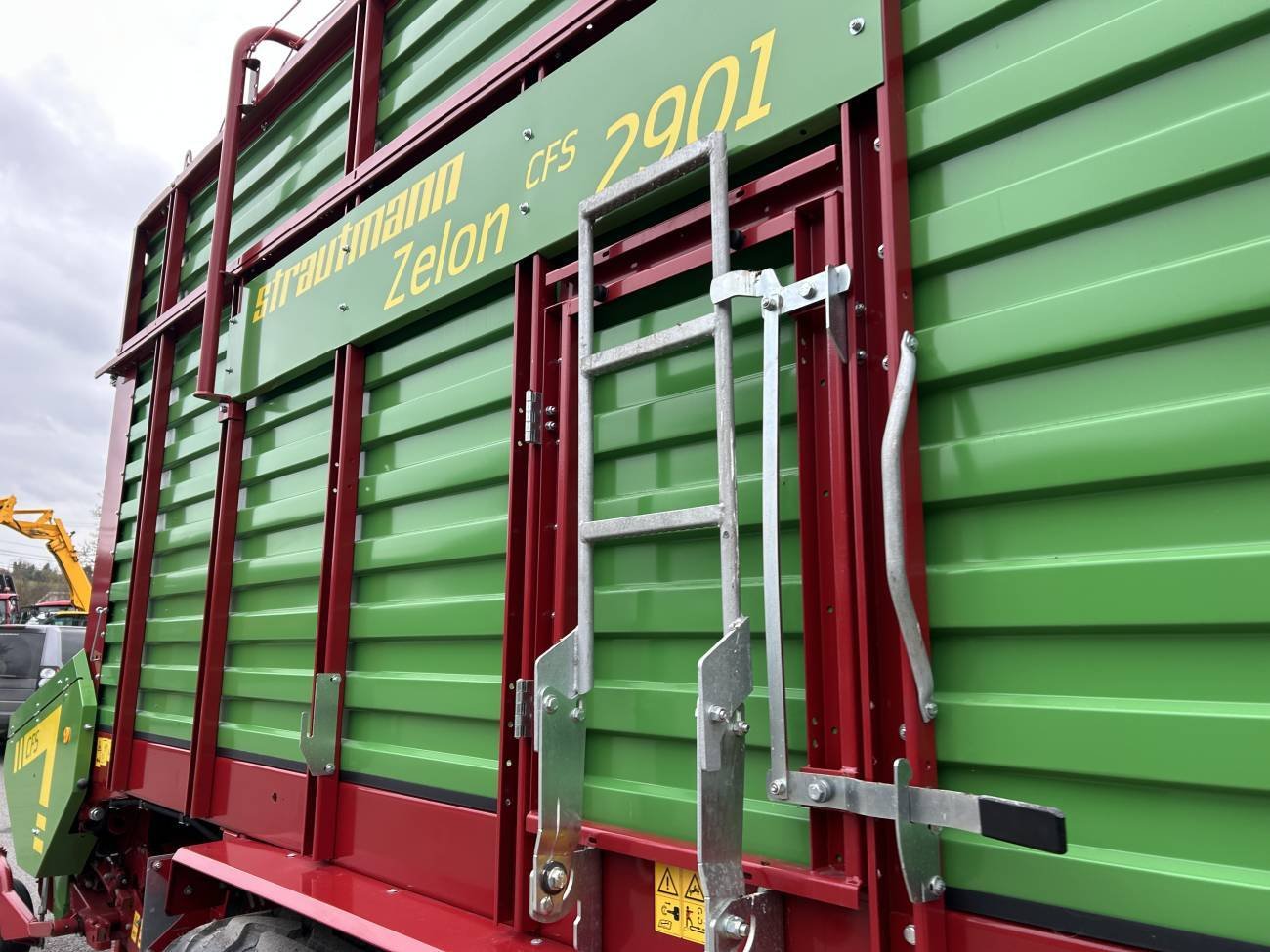

Body

• stable, multi-purpose all-steel construction
• Slip-proof transport floor
• Powder coated steel floor
• Optimum filling degree of the loading space

Rotor and cutting unit

For optimum fodder quality

• 1.50 m wide rotor with 5 tine rows
• Spiral-shaped conveyor tines
• Standard 37 knives with two cutting edges each for double service life
•  39 mm theoretical cutting length

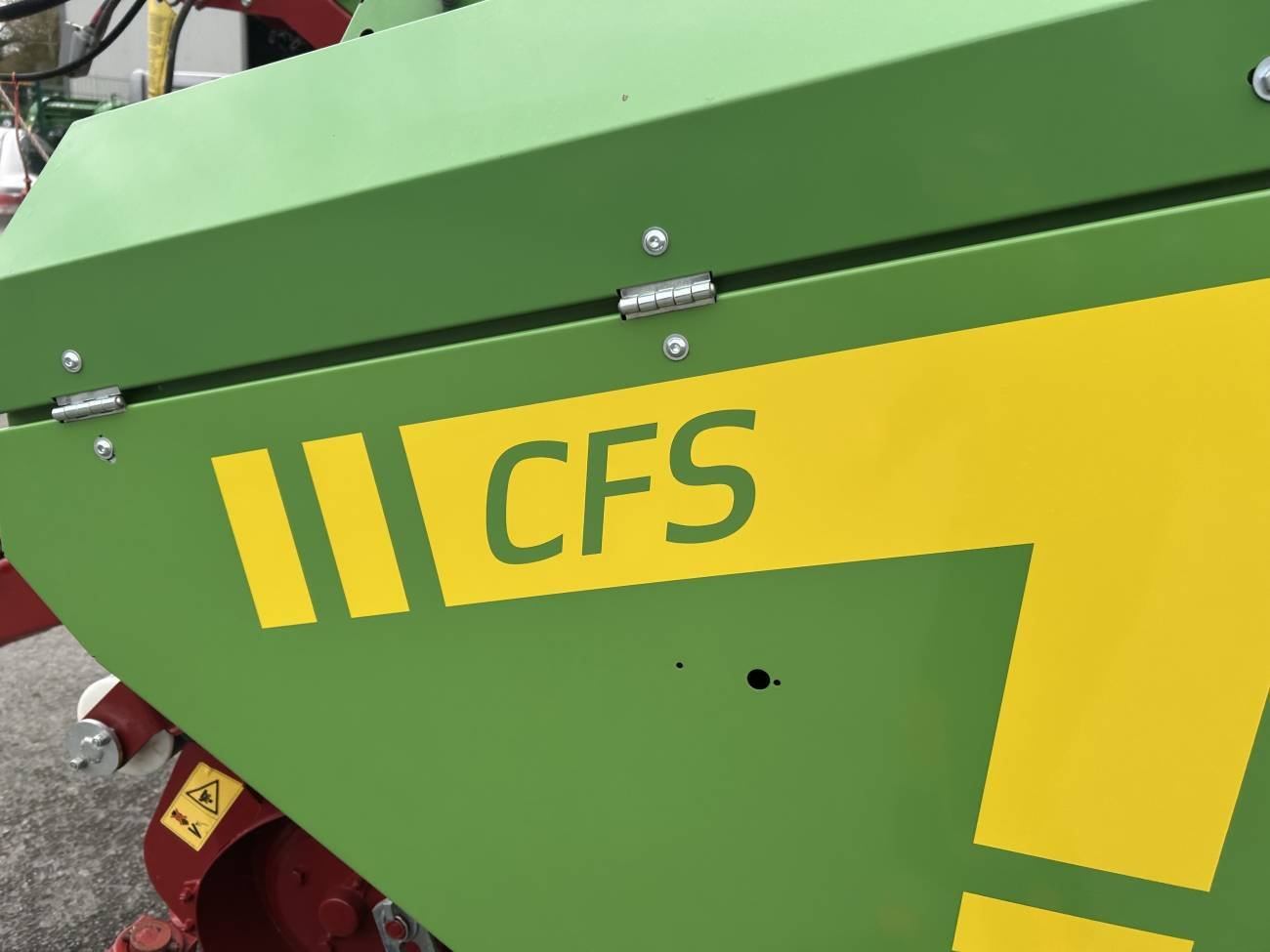

CFS – Continuous Flow System

– the system for efficient charging

Due to the interaction of different components, the CFS unit ensures excellent easy towing with little power required. Pick-up, CFS roller, rotor and Exact-Cut cutting unit are ideally matched to each other and complement each other perfectly. This results not only in excellent cutting quality but also in easy towing, thus saving power, money and time.

Flex-Load Pick-up (optional)

Flexible charging – Saving time and effort

Minimum wear and optimum adaptation to ground due to the innovative Flex-Load pick-up with plastic tines
