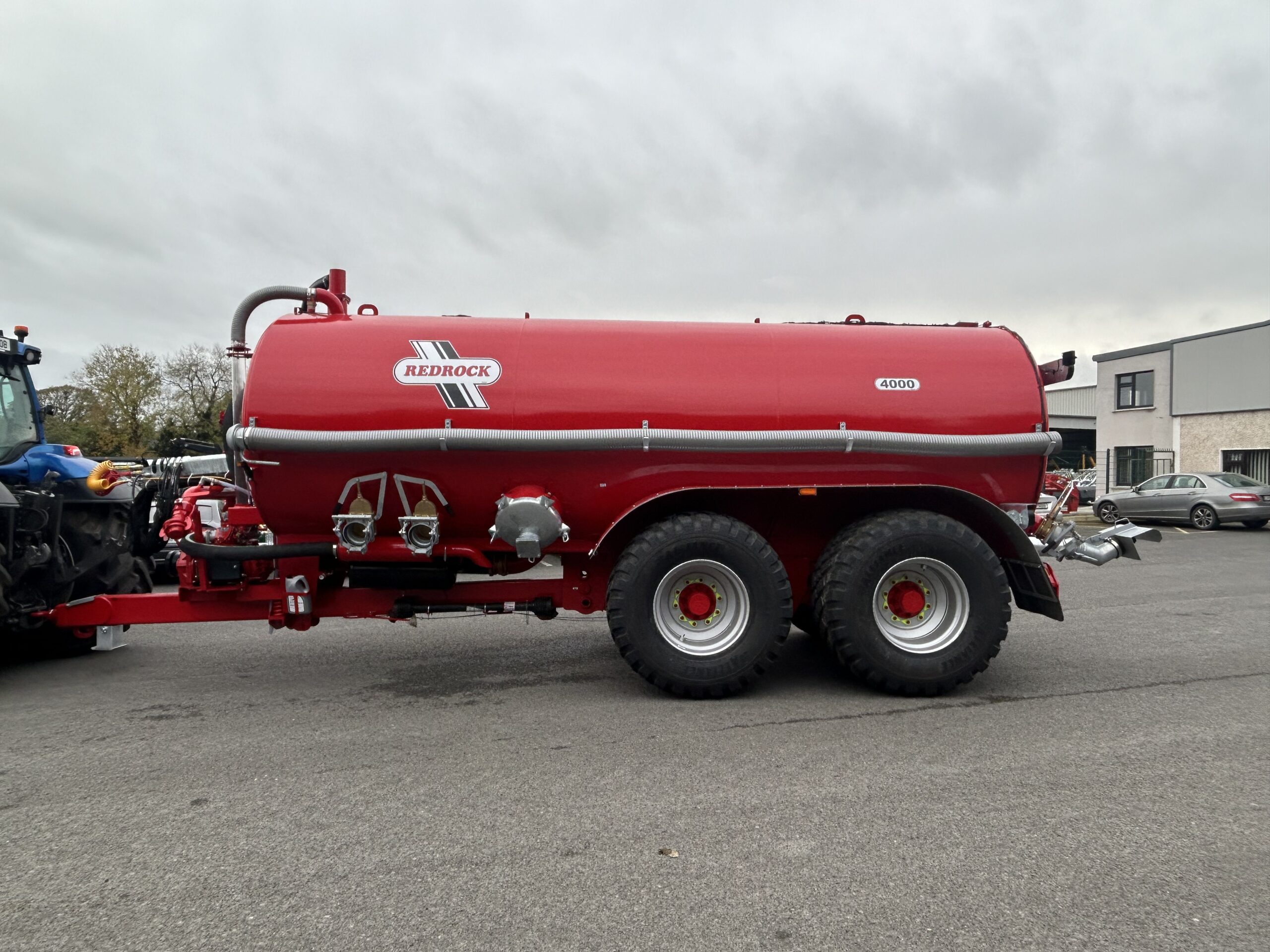

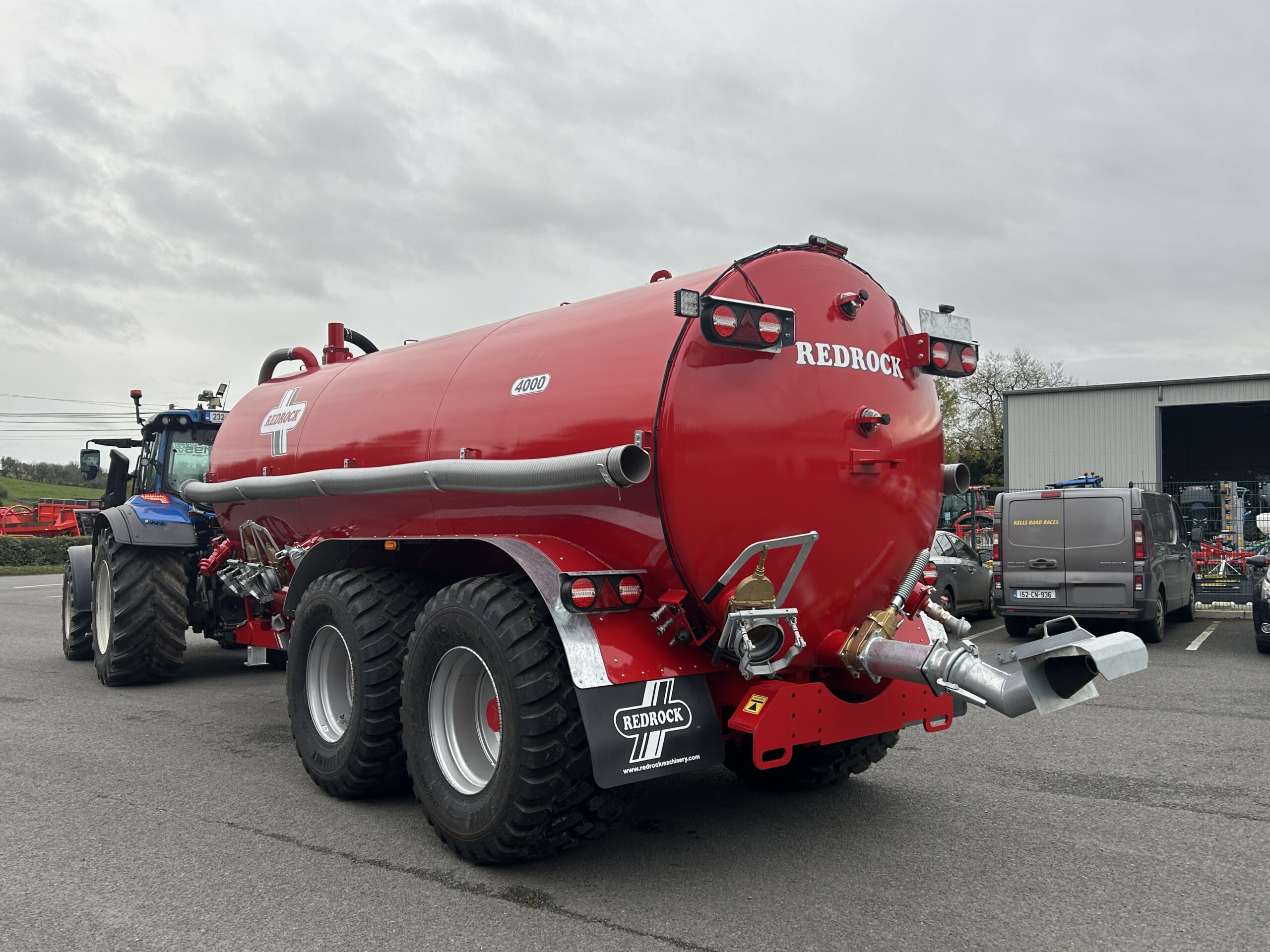

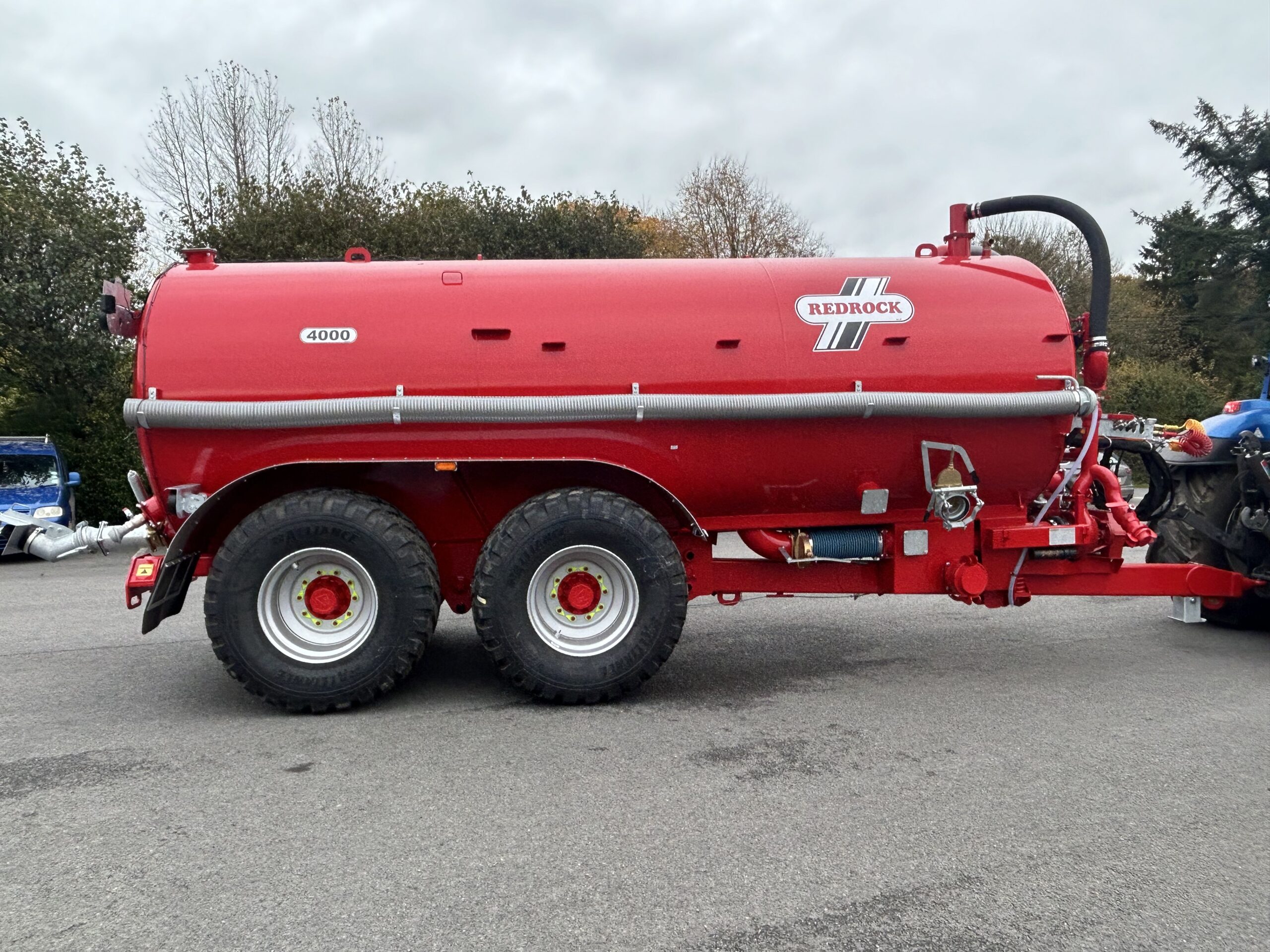

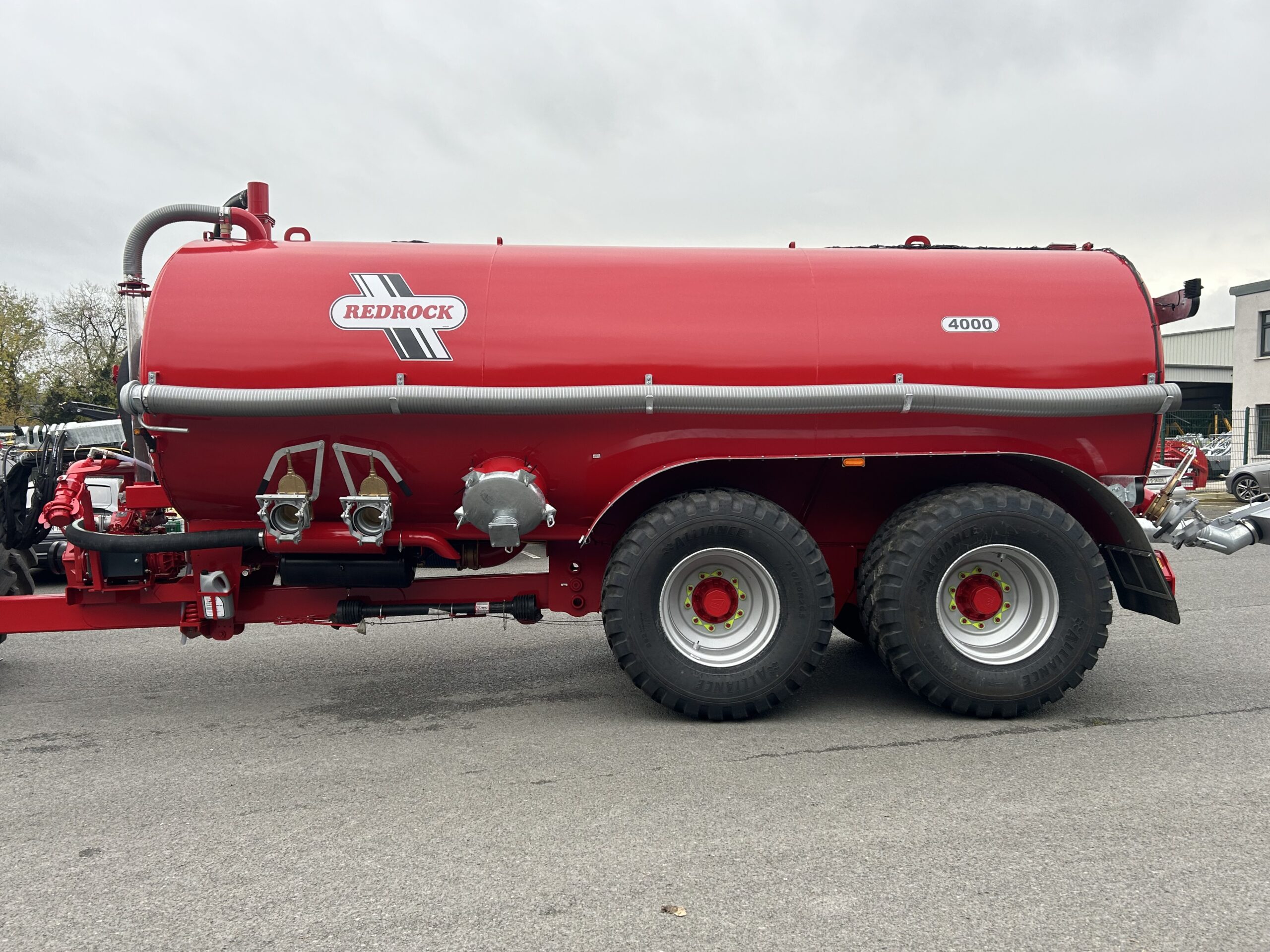

Redrock Slurry Tanker – Tandem or Tri Axle

  • Overview
  • Specifications
  • Gallery


The Redrock slurry tanker range is built to the highest quality. Rolled from 6mm steel, all the tanks are welded both internally and externally and include 4” x 2” channel rings welded inside the tank for extra strength and a longer service life. The Redrock body, wheel arches, supports and draw-bar are designed and manufactured to the most exacting standards to maintain rigidity, reliability and road-worthiness year after year.

High Grade Rolled Steel – All Redrock vacuum tankers are made with 6mm high grade rolled steel. The tankers are welded internally and externally and fitted with anti-enclosure rings to ensure the strains exerted on the tank are limited.

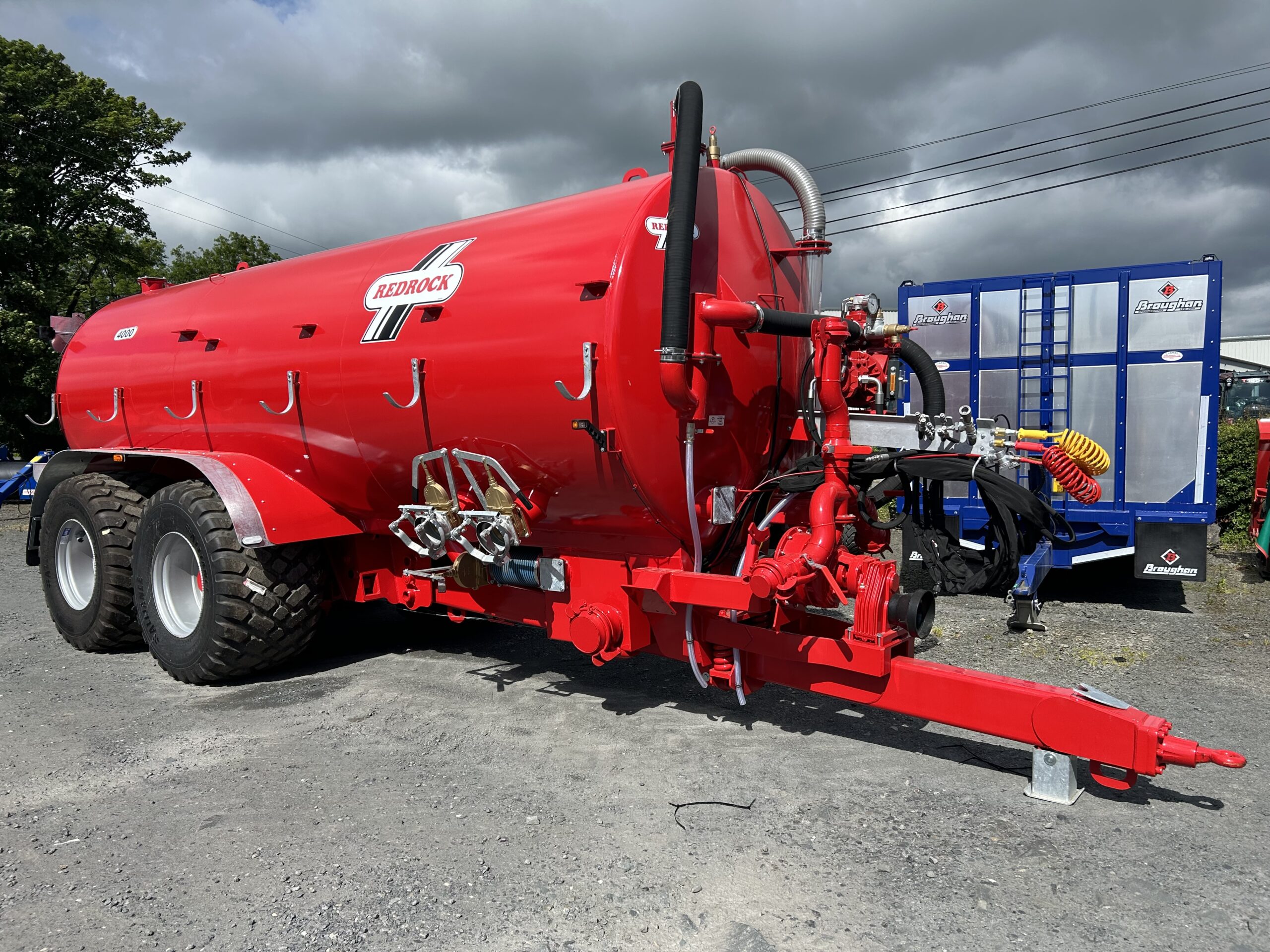

Drawbar – All vacuum tanker drawbars are made full length and attached in front of the axle/axles so the tank is pulled from the front point of the running gear reducing stress on the tank.

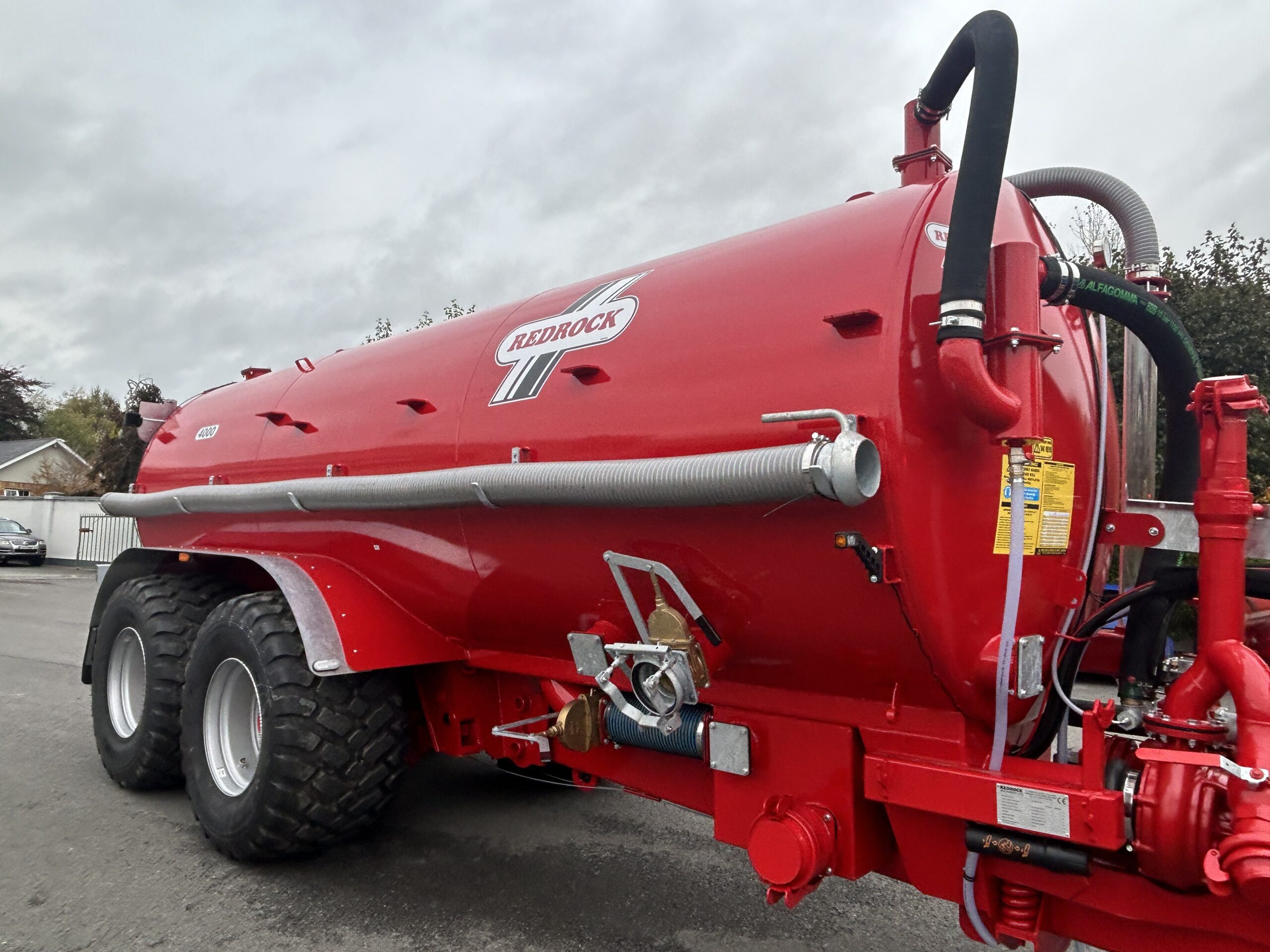

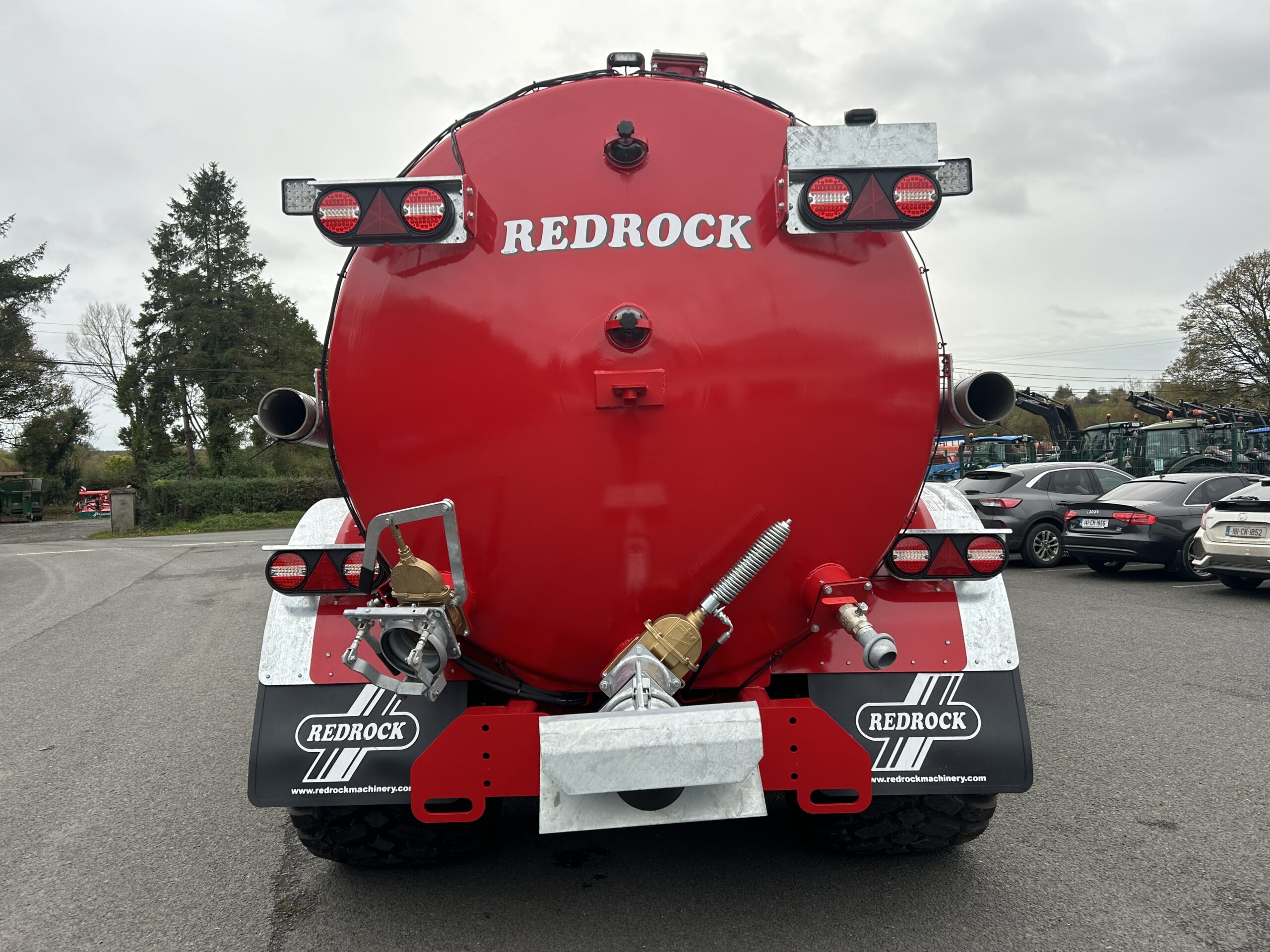

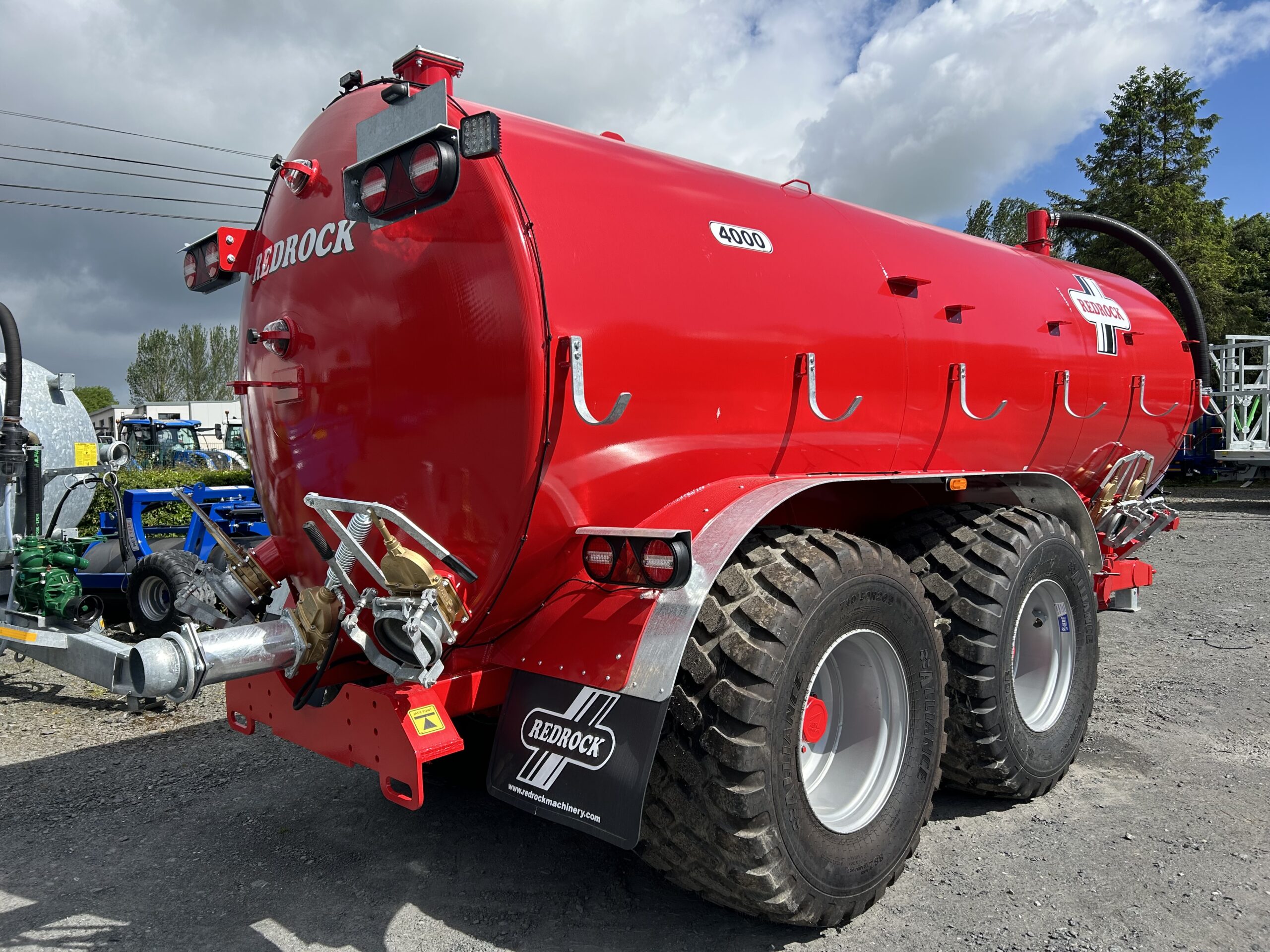

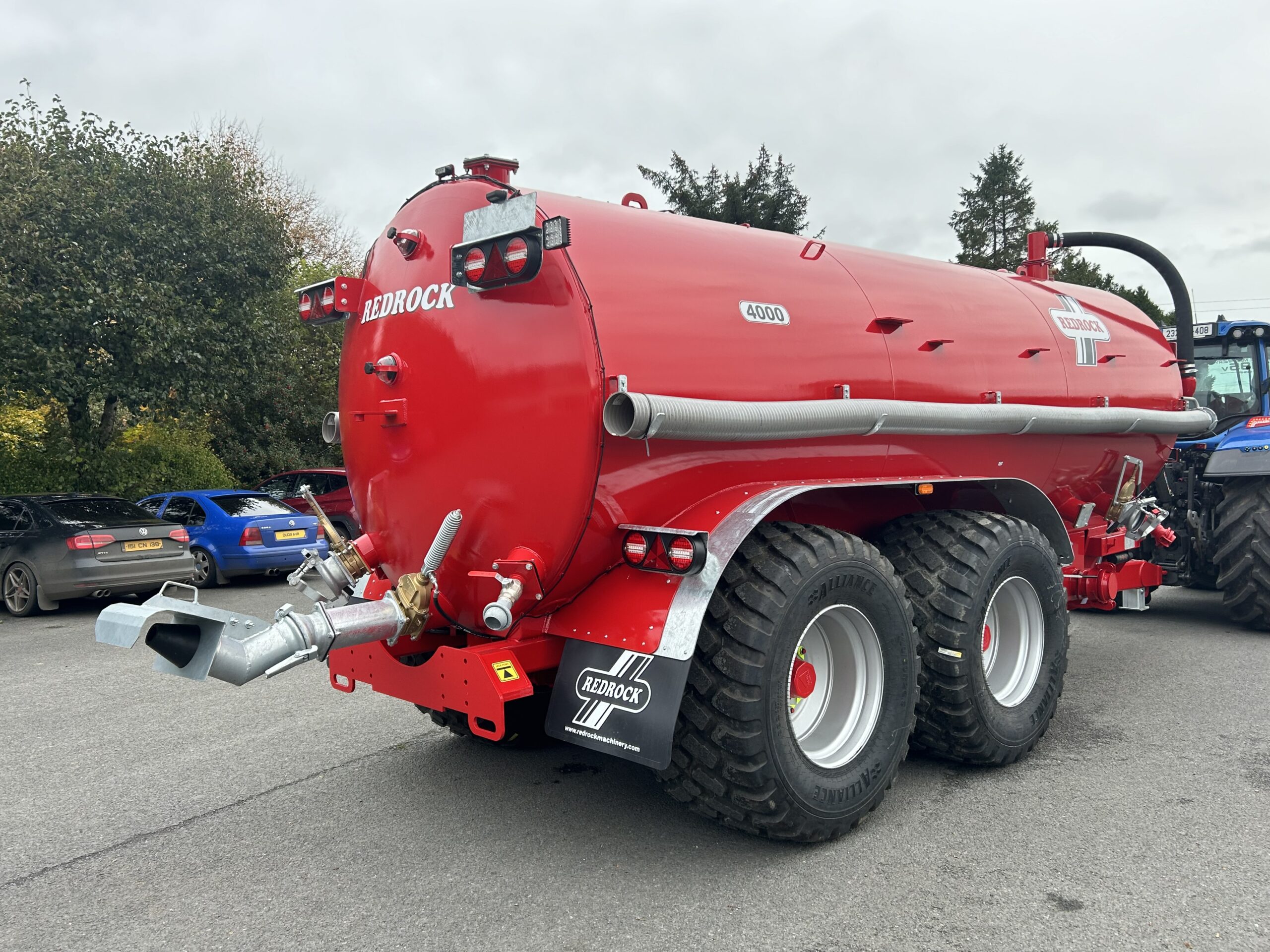

Standard Features – The Redrock vacuum tanker is fitted with hose hooks on both sides, three sight glasses at front and one sight glass at rear.

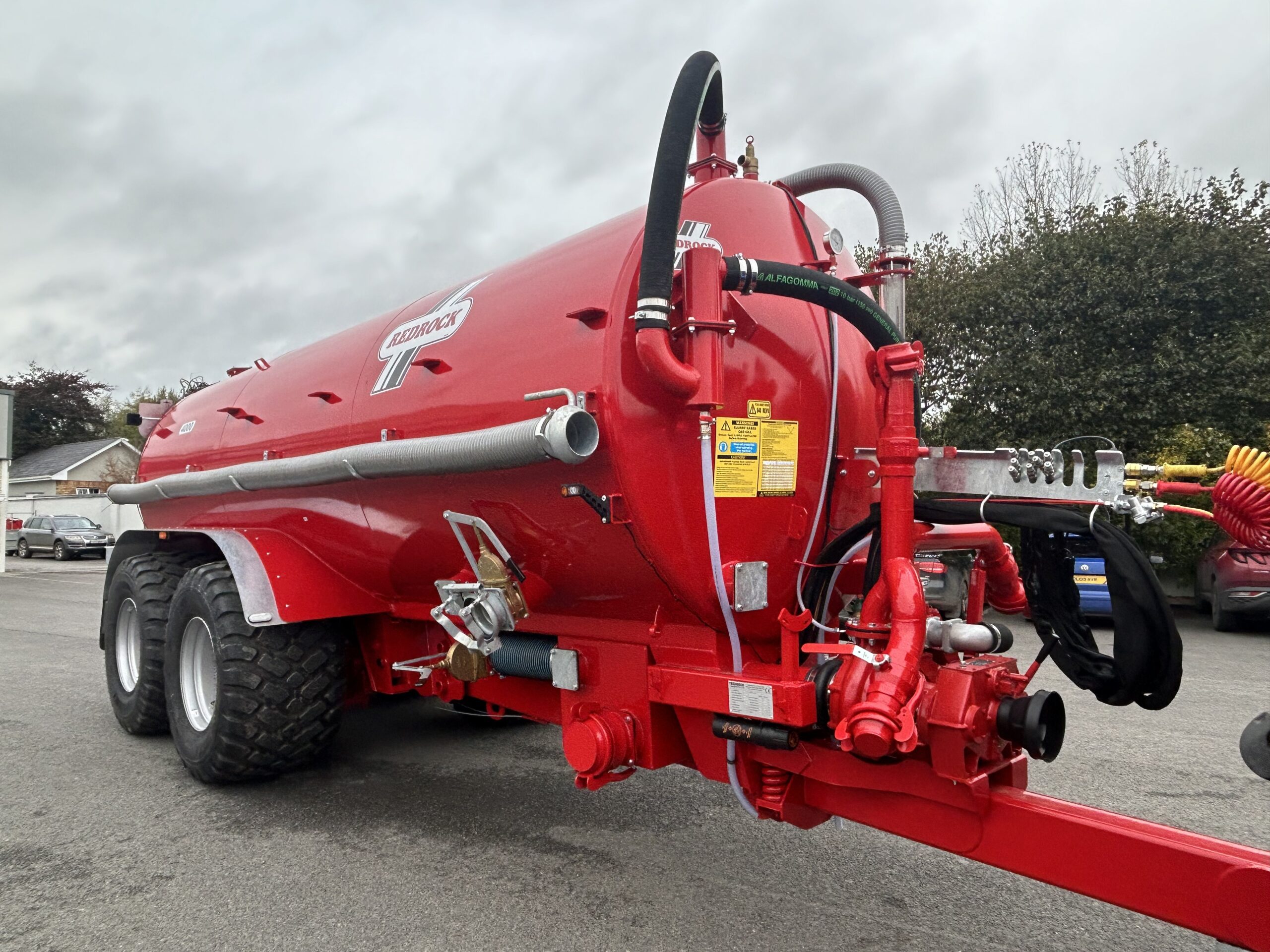

Jurop Vacuum Pumps – Jurop vacuum pumps are fitted as standard and the spreading and suction controls are operated hydraulically. Tanks are fitted with anti-implosion valves and pressure relief valves for safety.

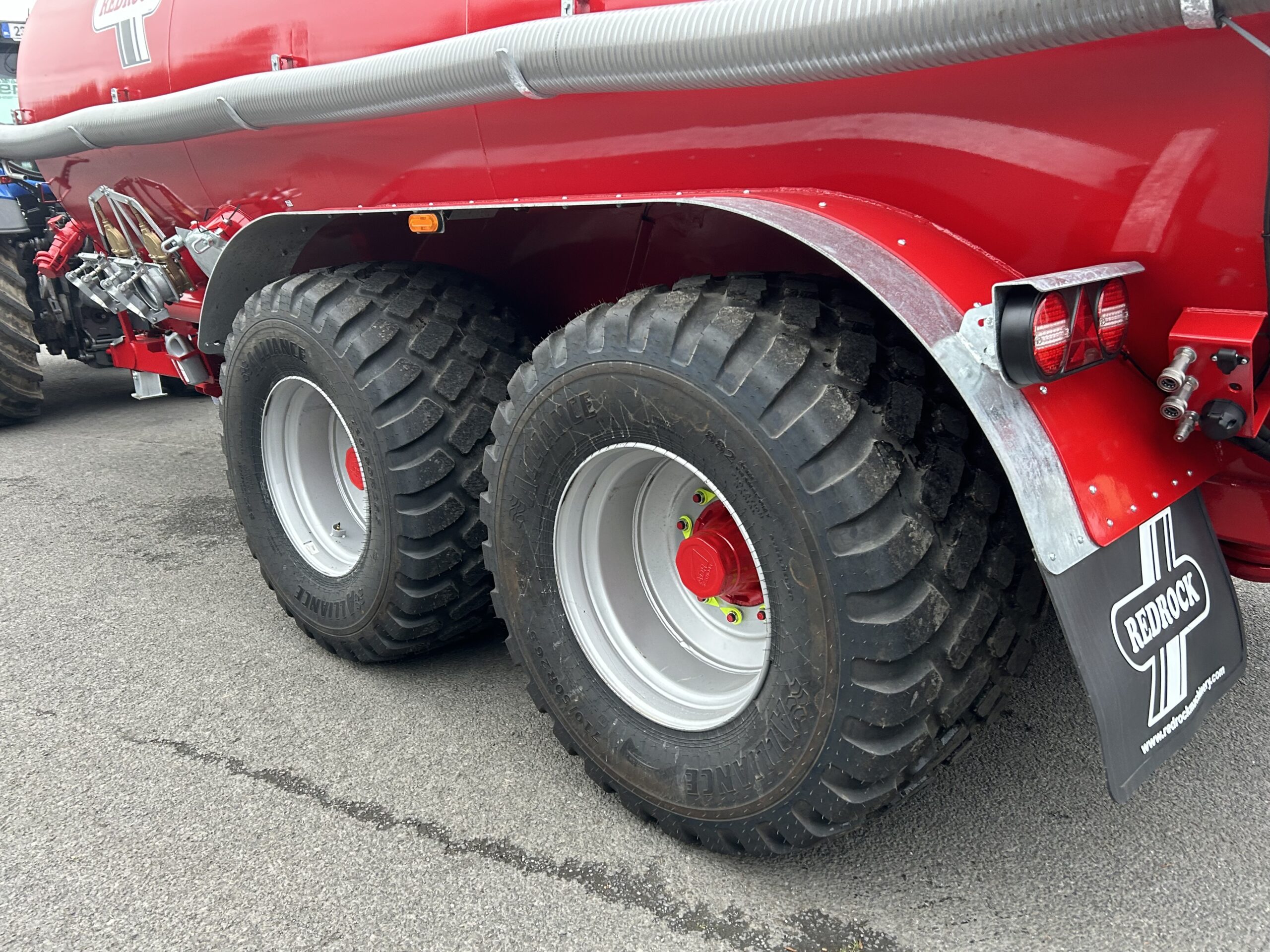

Commercial Axles – Commercial axles are fitted to all tanks 1600 Gallon (7200ltrs) and above and these are fitted with 28.1 x 26 wheels or above, for increased braking efficiency.

Wheel Options – A wide range of wheel options are available to choose from, and there are also many optional extra’s available to tailor your tanker to your individual needs.


Model – Slurry Tanker – Tandem or Tri Axle

Specification 3000g 3500g 4000g 4500g
Litre 13600 15900 18150 20400
Wheel Size 560/60 R26 560/60 R22.5 710/50 R26.5 710/50 R26.5
Overall width (mm) 2560 2560 2700 2700
Overall Length (mm) 7550 8050 9050 10050
Barrel Diameter (mm) 2000 2000 2000 2000
Pump Size (Litre / min) 13850 13850 13850 13850
