Overview
MJ22 Flail Mowers

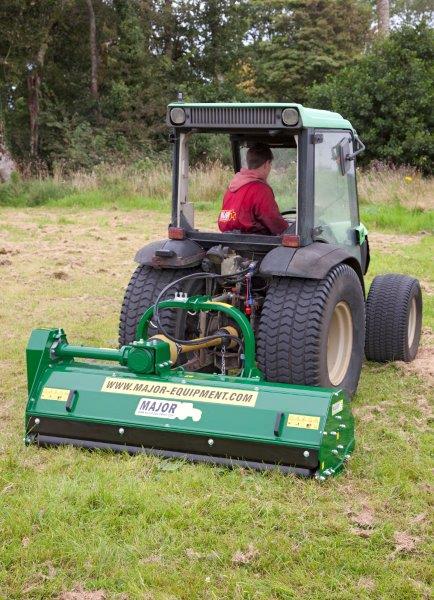

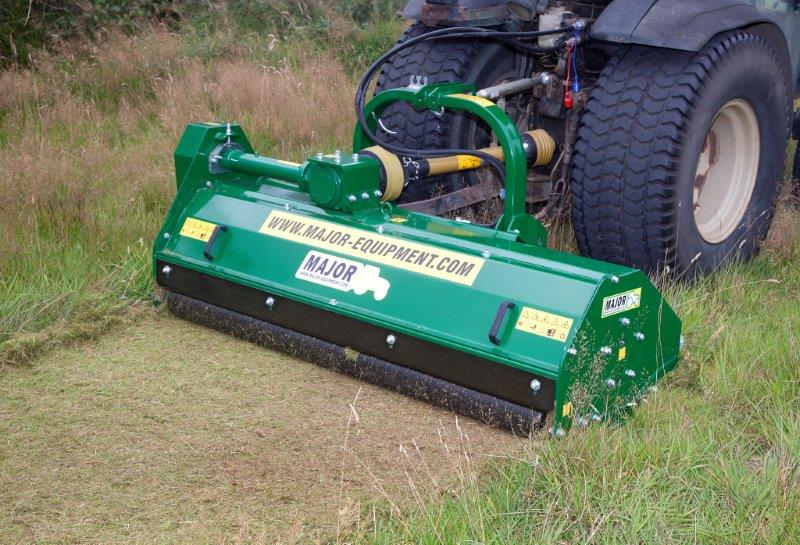

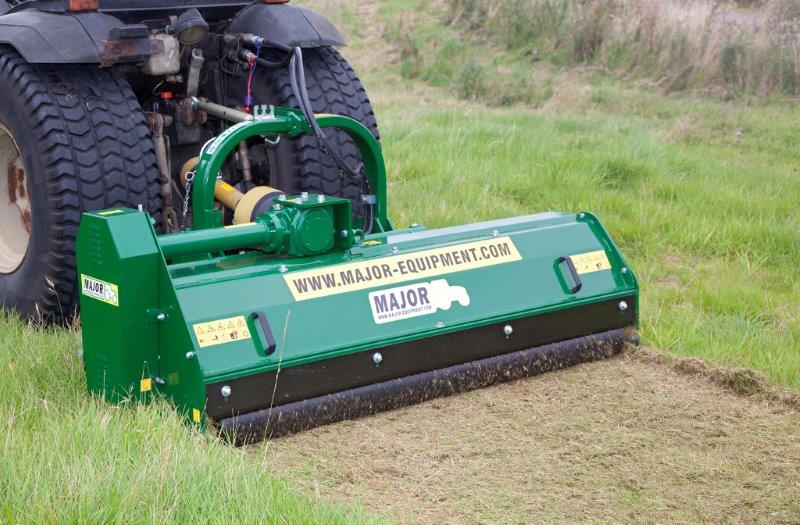

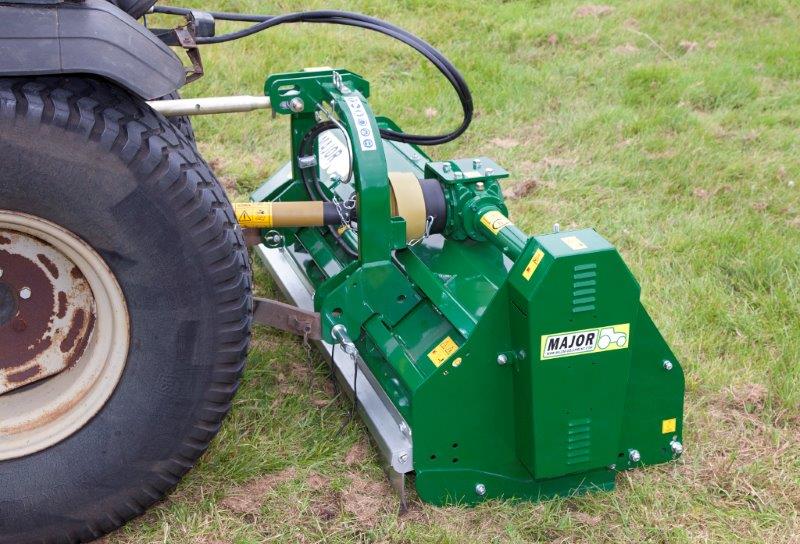

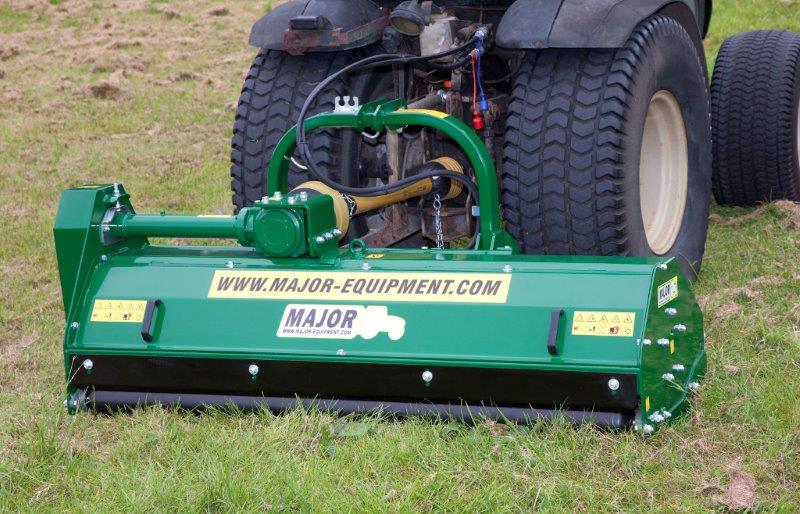

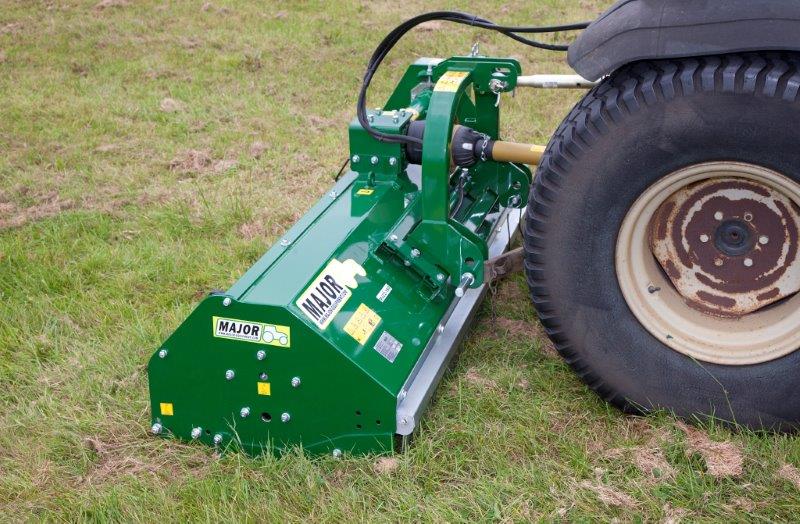

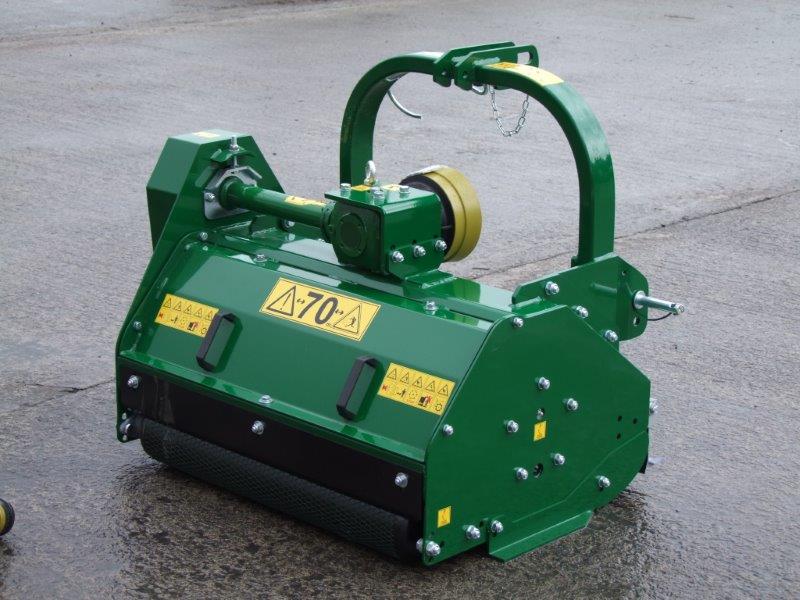

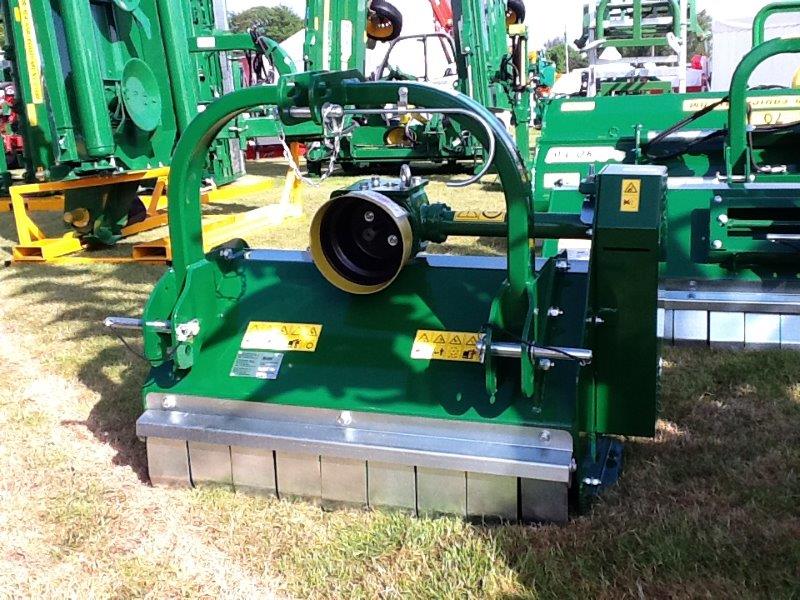

The MAJOR MJ22 Flail is a sturdy and compact shredder/flail mower with standard 3 point linkage (rear or front mounted). This flail mower is suitable for pruning in the most different working conditions such as vineyards, orchards and green areas.
- Three point Cat. I linkage
- Gearbox with rear PTO and free wheel
- Standard driveline
- Rear roller
- Hammers fitted as standard
- Front protection flaps
- Optional front mount kit
Specifications
| Model | MJ22-100 | MJ22-140 | MJ22-180 |
| Working Width | 0.93m (3′ 1″) | 1.3m (4′ 4″) | 1.78 (5′ 10″) |
| Overall Width | 1.1m (3′ 7″) | 1.5m (4′ 11″) | 1.96m (6′ 5″) |
| Machine Height | 0.91m | .82m | .82m |
| Machine Depth | 1.2m | .91m | .91m |
| Knives | 28 | 40 (option) | 52 (option) |
| Hammers | 14 | 20 | 26 |
| Power (HP) | 20 | from 30HP | from 40HP |
| PTO rpm | 540 | 540 | 540 |
| Belts | 3 | 3 | 4 |
| Weight | 243kg | 327kg | 397kg |
