Overview
The Malone ProCut 3 Point linkage mower is an excellent heavy duty machine that easily handles the tough terrain, producing a perfect clean cut every time- vital for speeding up grass recovery time.
What really makes the Malone Mower a cut above the rest is the heavy duty Galvanised Frame, ensuring the long life of your machine and the Multi Banded belt prevents slipping and means that constant power is transmitted to the heavy duty cutter bar.

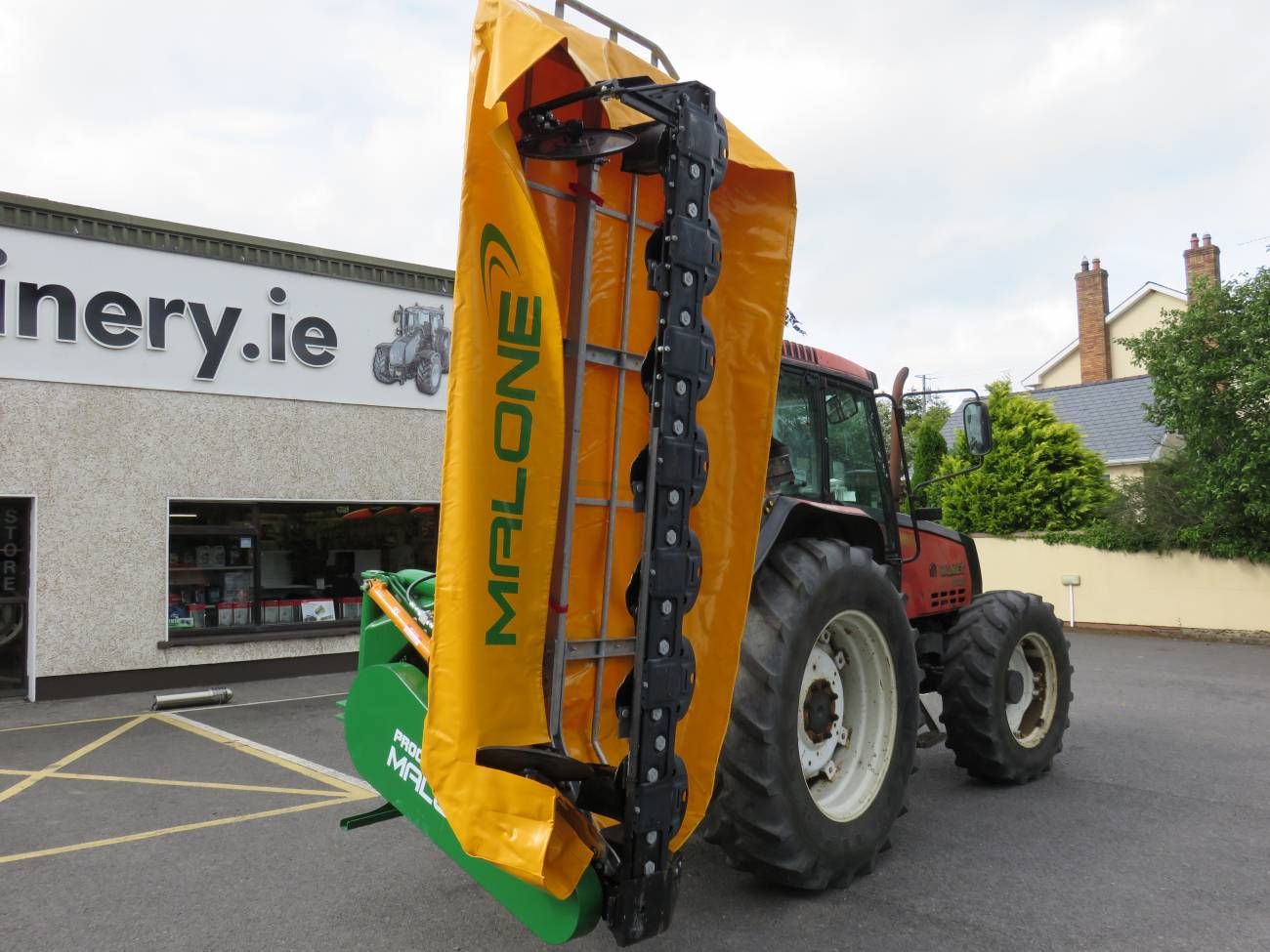

The Heavy Duty Cutter Bars have five, six & seven discs respectively, each with two blades. The special Breakaway System allows the mower to swing back 45 degrees; this protects the cutting bed in the event of a collision.
Malone Procut Disc Mower – 700/800/900
- Available in three sizes 7′, 8′ & 9′
- Galvanised curtain frame
- Multi-band belt driven
- Bronze Bushing on main pivot point
- Heavy duty cutter bar
- Topping skids included
- Tool box & full colour user manual
- Superior flotation
Specifications
700 | 800 | 900 | |
Cutting Width | 2.1m | 2.4m | 2.9m |
Transport Width | 1.75m | 1.75m | 1.95m |
Weight | 570Kg | 610Kg | 710Kg |
Cutter Bar | Serviceable from top | Serviceable from top | Serviceable from top |
No. of Discs | 5 | 6 | 7 |
Blades Per Disc | 2 | 2 | 2 |
Blade | 4mm | 4mm | 4mm |
Topping Skids | Included as standard 40mm |
Included as standard 40mm |
Included as standard 40mm |
Swath Width | 1.5m | 1.8m | 2.1 |
Swath Wheels | 1 | 2 | 2 |
Driveline | Heavy duty drive shaft / PTO Overrun / Multiband Belt |
Heavy duty drive shaft / PTO Overrun / Multiband Belt |
Heavy duty drive shaft / PTO Overrun / Multiband Belt |
HP Req. | 60 | 70 | 80 |
PTO Speed | 540rpm | 540rpm | 540rpm |
Hydraulics Req. | 1 Single Acting | 1 Single Acting | 1 Single Acting |
