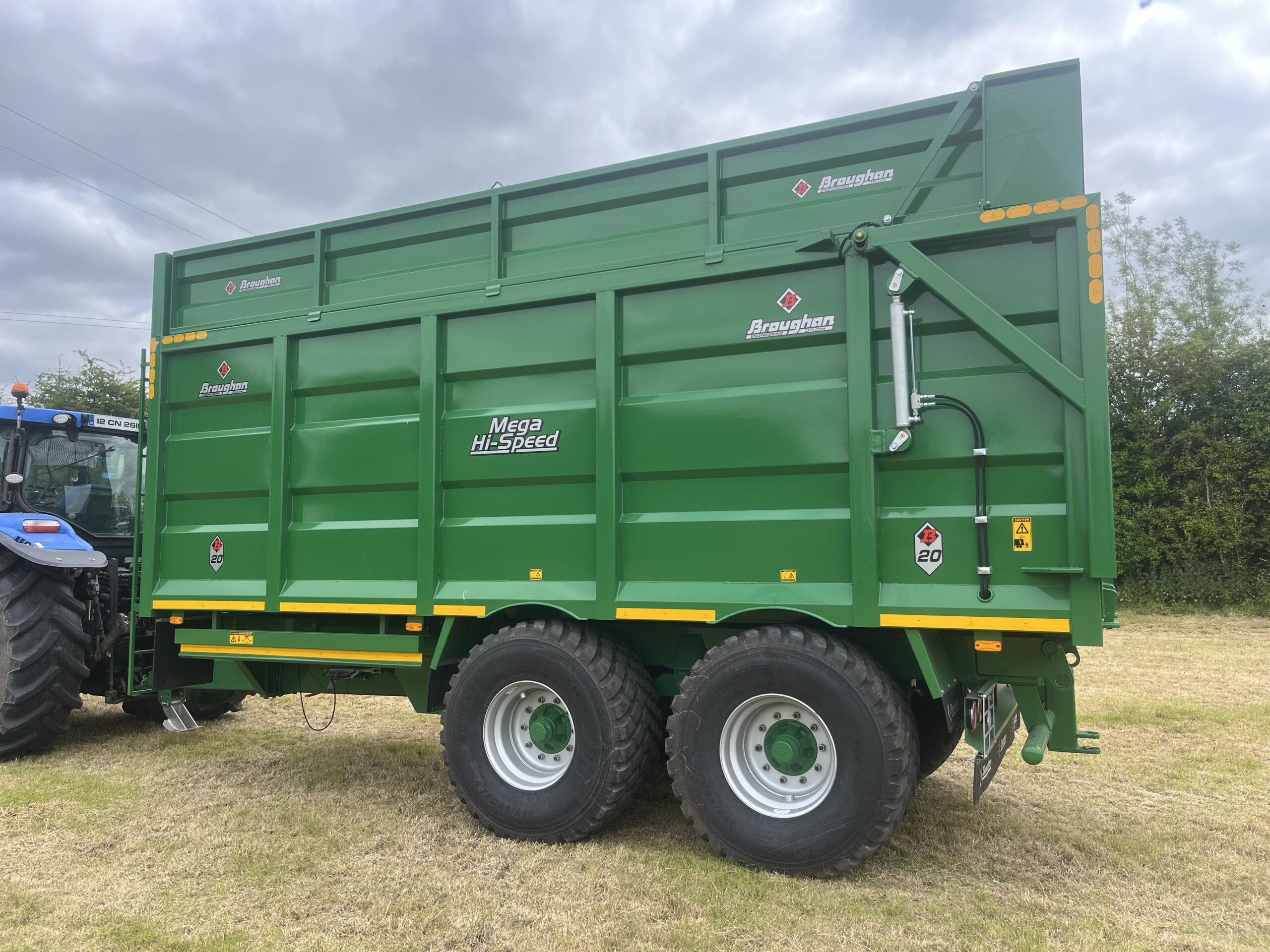

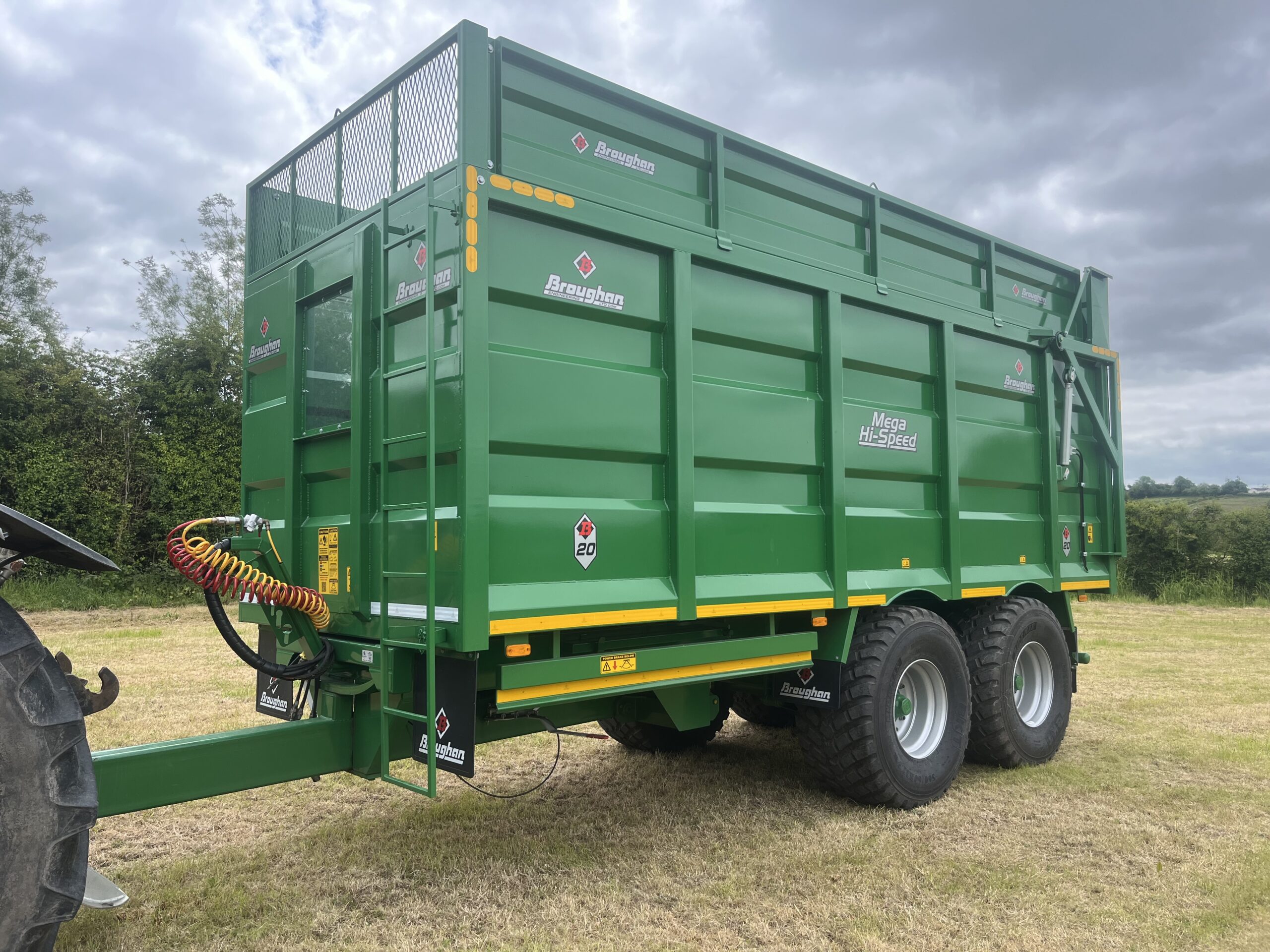

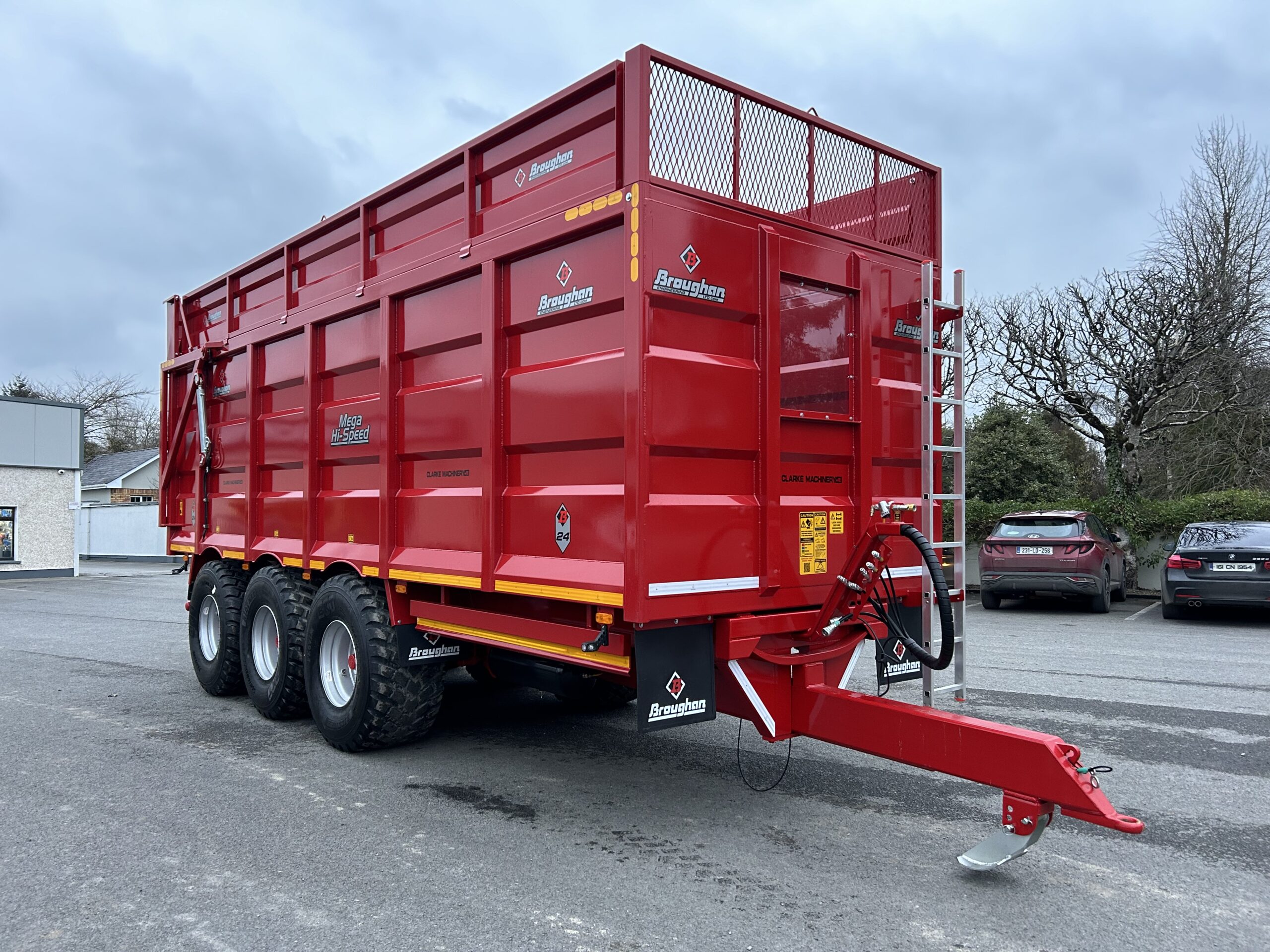

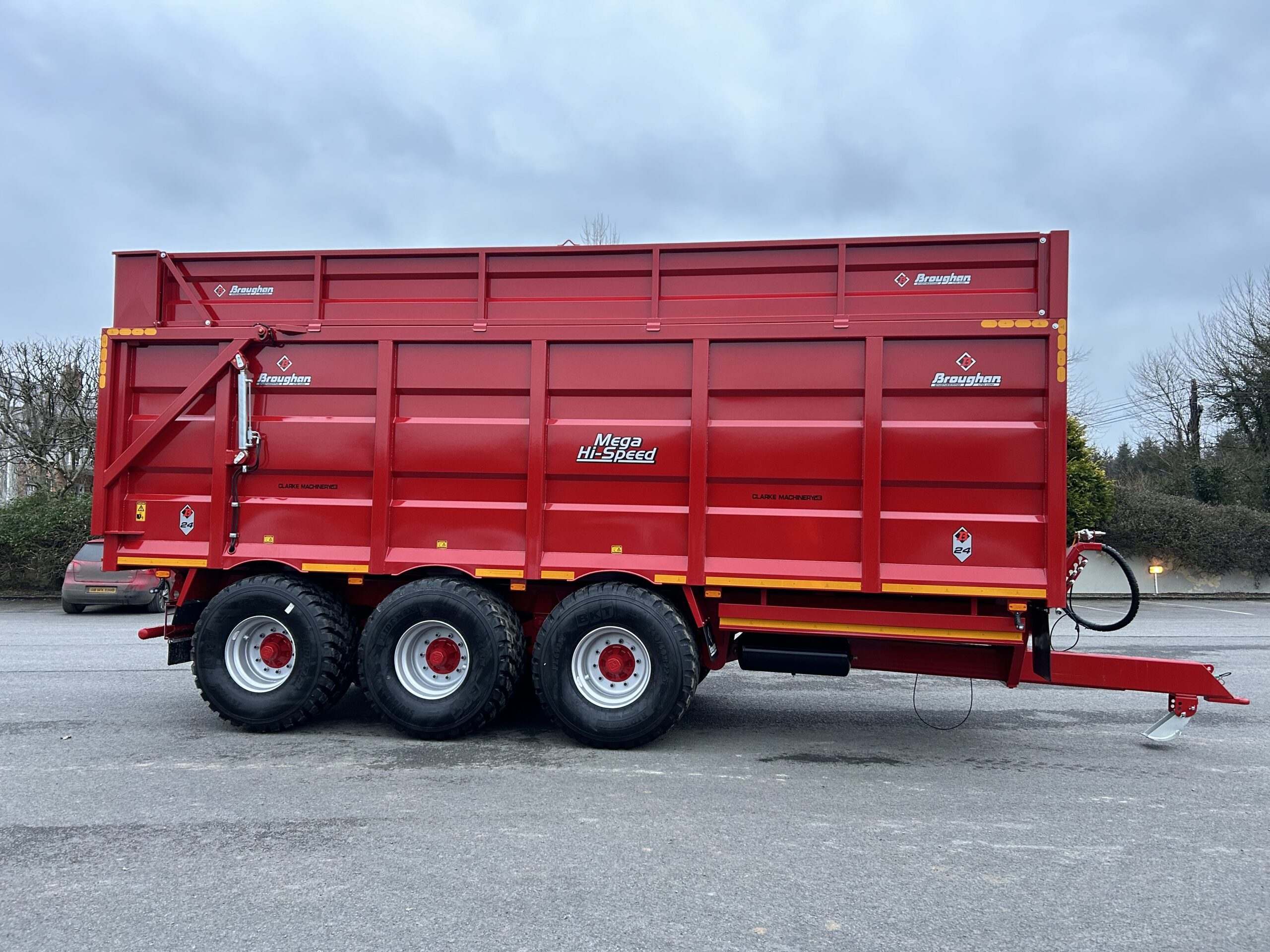

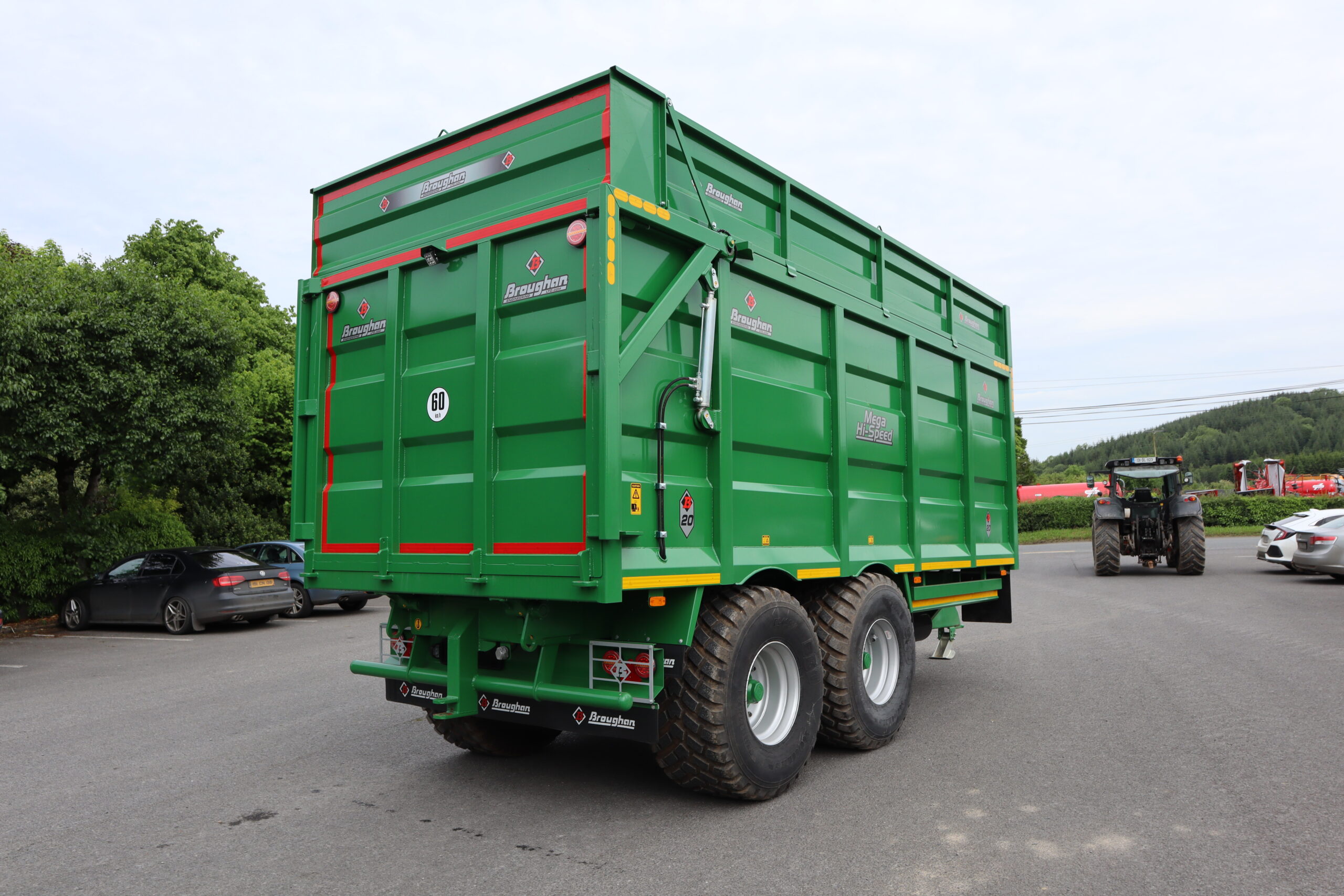

- Gallery
Overview
Grain, Silage & Toot Crop Trailers
The range of grain, silage and root crop trailers are available from 12 to 24 tonne tri-axle with 10 stud commercial axles on spring suspension with a large range of optional extras.
Lenghts available 16ft, 18ft, 20ft, 22ft & 24ft.
Standard
- Colour (Red, Green or Blue)
- Mudguards
- Side Markings
- LED Road Lights
- Side lights
- Twin rear lights (each side)
- Axle – 127mm round – 12 tonne @ 105 km/hr
- Brakes – 420 x 180 brake shoes
OPTIONAL EXTRAS
- Automatic locking rear door
- Roll over cover
- Cat Walk
- Grain Choute
- Flashing Beacon
- Swivel Hitch
- Air Brakes
- Air Suspension
- ABS Brakes
The Broughan Grain, Silage and Root Crop trailers can be manufactured with a long list of optional extras. Whatever the requirment, you can be sure we can facilitate any design feature you may need.
Specifications
| Capacity/Length | 16ft | 18ft | 20ft | 22ft | 24ft |
|---|---|---|---|---|---|
| Outside Width | 8ft 3″ | 8ft 3″ | 8ft 3″ | 8ft 3″ | 8ft 3″ |
| Height (to floor) | 4ft | 4ft | 4ft | 4ft | 4ft |
| Axles 127mm round | Twin | Twin | Twin | Twin/Steering | Tri/Steering |
| Suspension | Spring | Spring | Spring | Spring | Spring |
| Floor | 5mm | 5mm | 5mm | 5mm | 5mm |
| Sides | 3mm | 3mm | 3mm | 3mm | 3mm |
| Sides (height) | 4 to 6 ft | 4 to 6 ft | 4 to 6 ft | 4 to 6 ft | 4 to 6 ft |
| Brakes | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Air/Hydraulic |
| Wheels/Tyres (standard UK) | 400 Cargo (remould) | 400 Cargo (remould) | 400 Cargo (remould) | 18R (remould) | 445/65/22.5 (new) |
| Wheels/Tyres (standard Ireland) | 400 Cargo (remould) | 18R (remould) | 18R (remould) | 18R (remould) | 445/65/22.5 (new) |
| Drawbar | Sprung | Sprung | Sprung | Sprung | Sprung |
| Capacity | 12 tonne | 14 tonne | 16 tonne | 18/20 tonne | 22 tonne |
| Cubic Metres (5ft Sides) | 18.72 | 20.38 | 22.65 | 24.92 | 27.18 |
