Overview

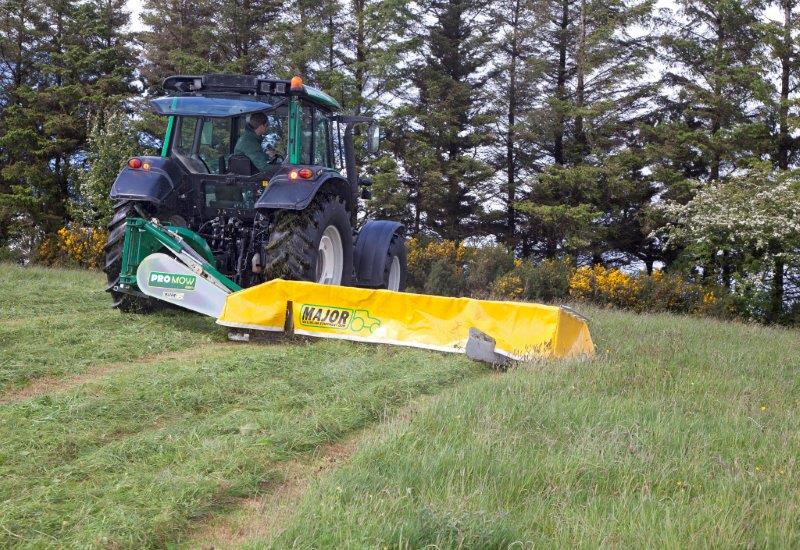

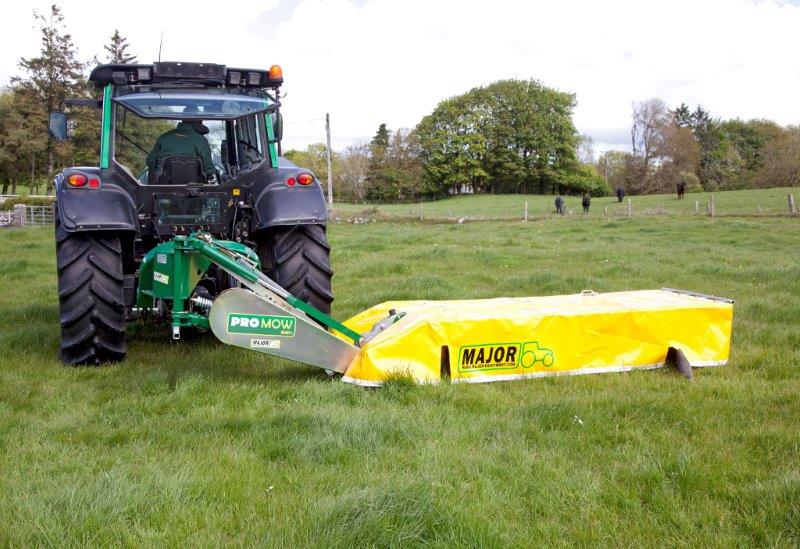

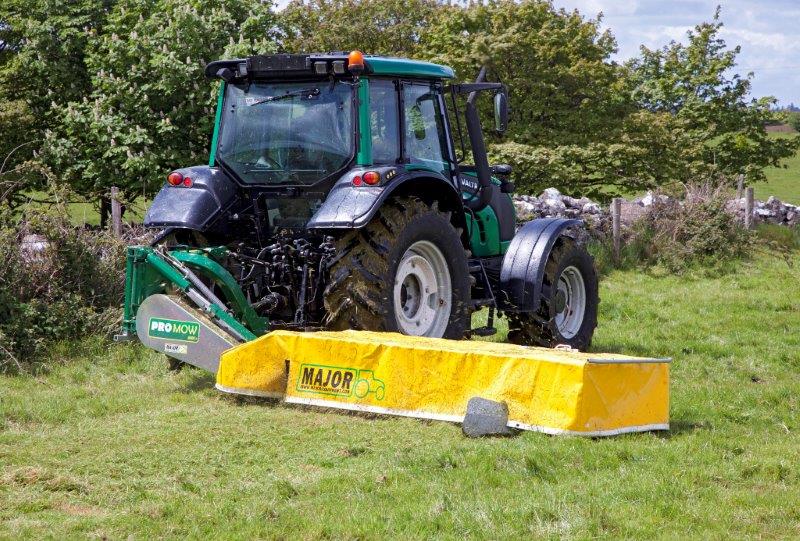

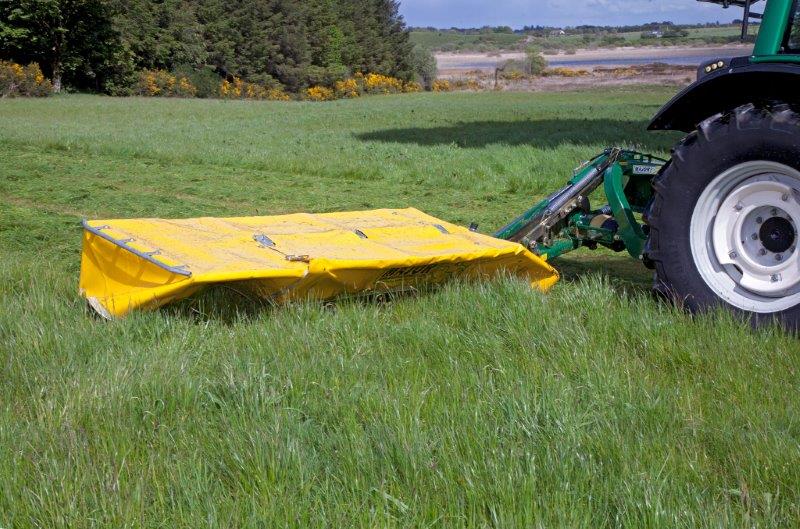

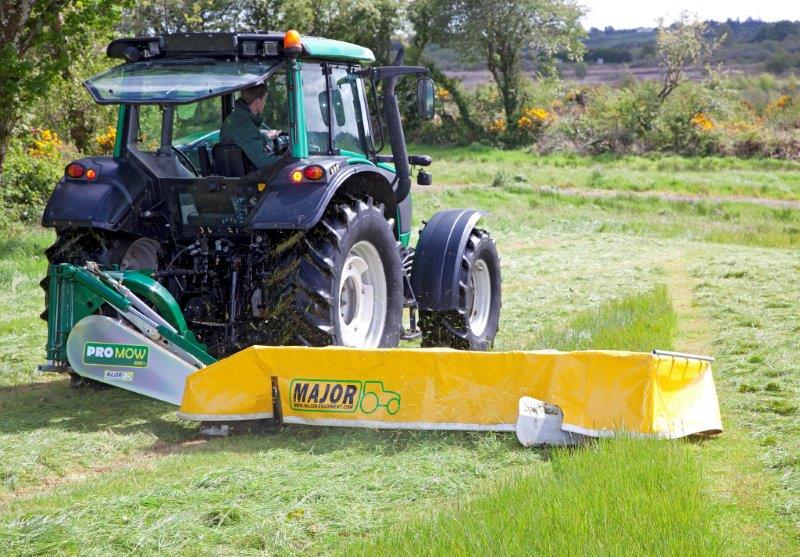

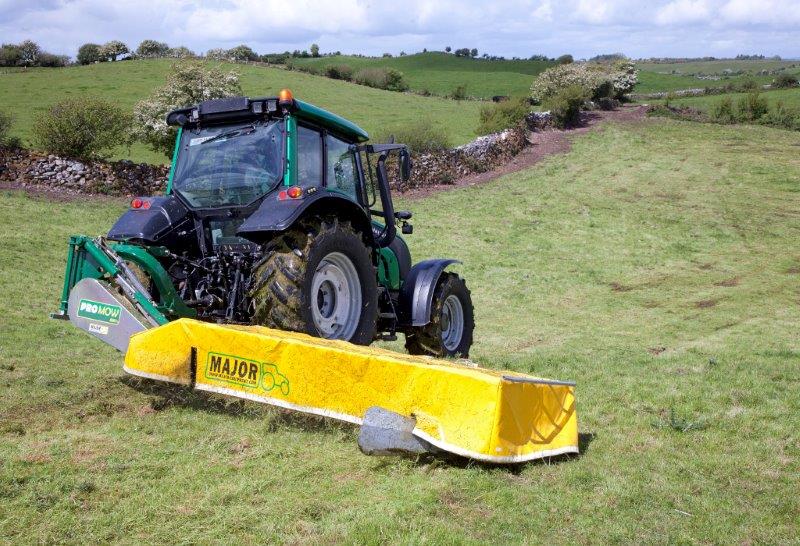

Disc Mower
The MAJOR Disc Mower has been designed to ensure you get a professional quality, clean cut every time. This machine allows a single operator to mount the mower
onto the tractor quickly and easily without assistance.

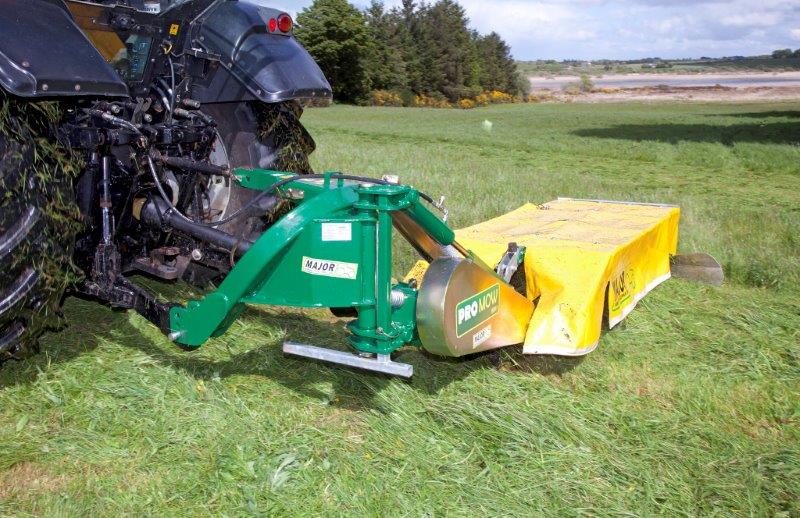

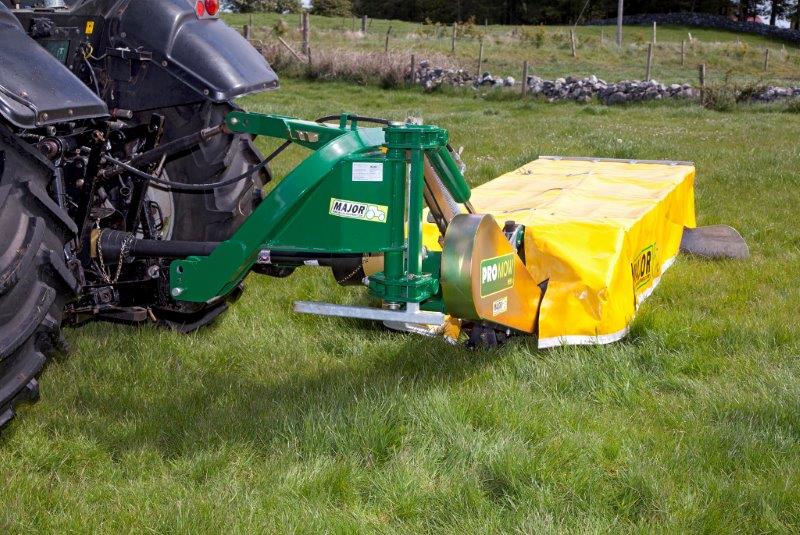

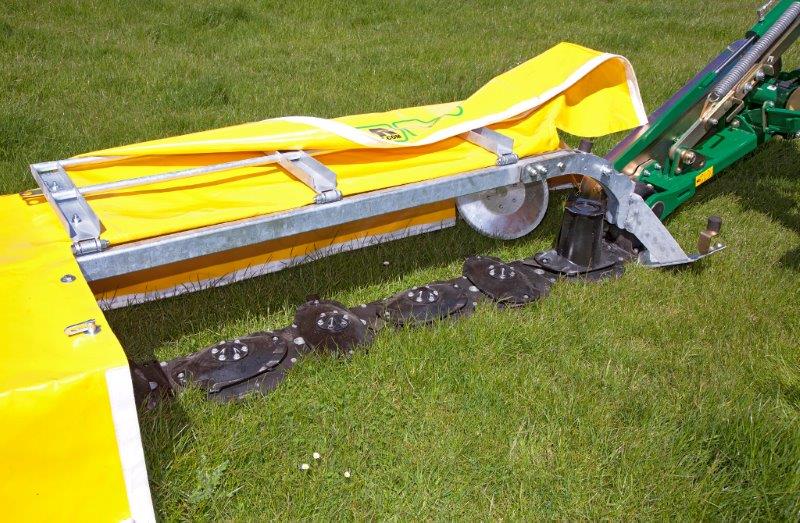

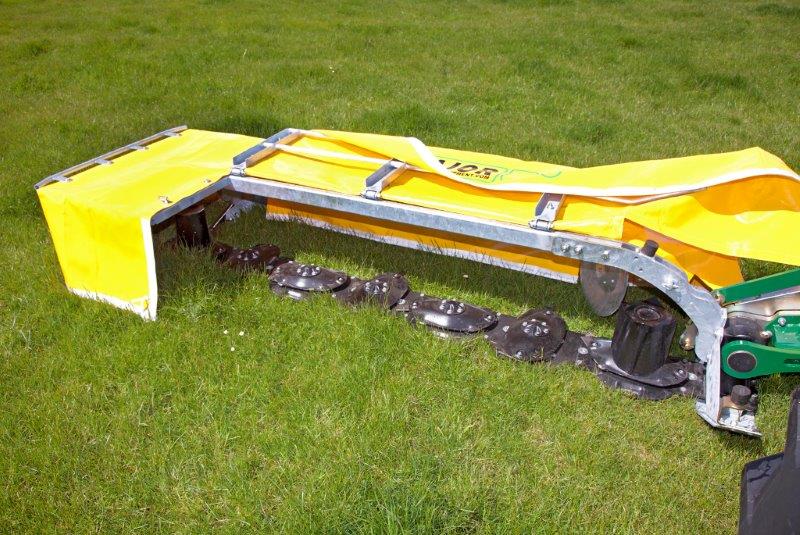

The heavy duty headstock and frame are designed for extra strength while the machine is working and during transport. The cutting bar is produced by Comer and is fully serviceable from the top. Spare parts are readily available.
A grass board is included as standard. There is a spring loaded pulley tensioner to give consistent tautness and reduce wear and tear on the belts. The galvanised folding canopy allows easy access to the machine to perform routine maintenance.

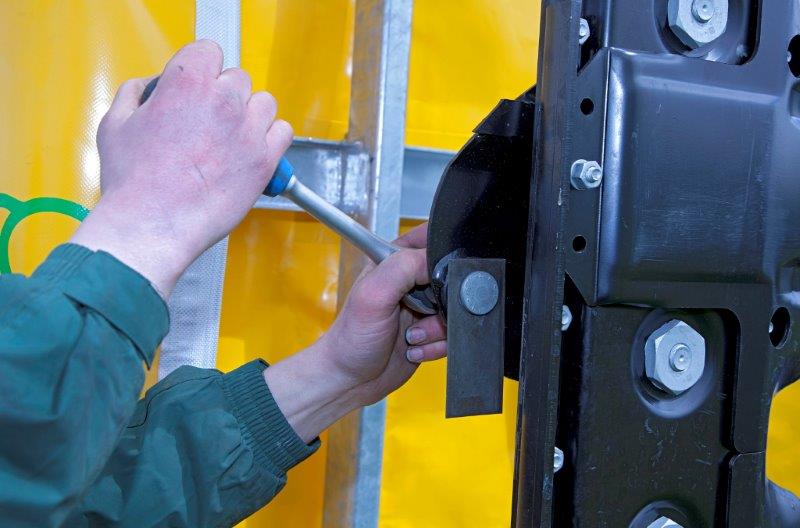

– 4mm heavy duty blades,
– Heavy duty PTO shaft with overrun
– Easyfit topping skids
– Parallel linkage on the
– MAJOR disc mower gives the bed a flatlift when mowing on headlands.
Specifications
Disc Mower – Specifications
Model | MJ50-240 | MJ50-270 ProMow |
Overall Width | 4.4m | 4.8m |
Working Width | 2.42m (8’) | 2.9m (9’) |
Transport Width | 1.8m | 1.8m |
Power (HP) | 40 – 90 | 50 – 100 |
PTO rpm | 540 | 540 |
Cutting Height | 55mm | 55mm |
Blades | 12 (6 rotors) | 14 (7 rotors) |
Weight | 560 kg | 600 kg |
Blade tip speed | 4670 m/min | 4670 m/min |
Mowing Rates (Acres/hr at 7mph) | 6.75 acres/hr | 8 acres/hr |
